Mfr Part #:

EVL90WADP-LLCSR

Name: EVL90WADP-LLCSR
Brand: STMicroelectronics
SKU: EVL90WADP-LLCSR

Mfr Name: STMicroelectronics

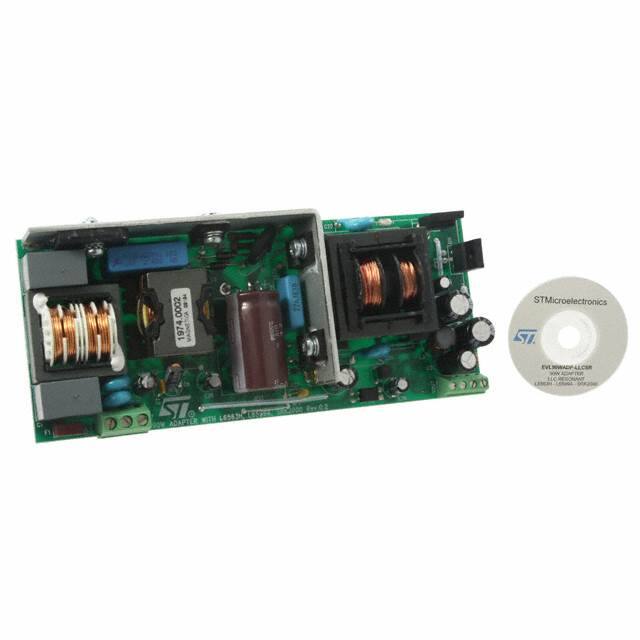

EVAL BOARD PORTABLE PWR SUPPLY

Stock on Request

EVL90WADP-LLCSR Description

Short technical summary and product information.

EVAL BOARD PORTABLE PWR SUPPLY

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Evaluation Boards - DCDC & ACDC (Off-Line) SMPS
Manufacturer Name	STMicroelectronics
Board Type	Fully Populated
Current	4.75A
Frequency	130kHz
Main Purpose	AC/DC, Primary and Secondary Side with PFC
Outputs and Type	1, Isolated
Power	90 W
Regulator Topology	Boost
Supplied Contents	Board(s)
Utilized IC	L6563H, L6599A, SRK2000
Voltage	90 ~ 264 VAC
