| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,002 pcs
|
2002 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Embedded | |
| Function | |
| Primary Attributes | |
| Supplied Contents | |
| Tape & Reel | |
| Type | |
| Utilized IC |

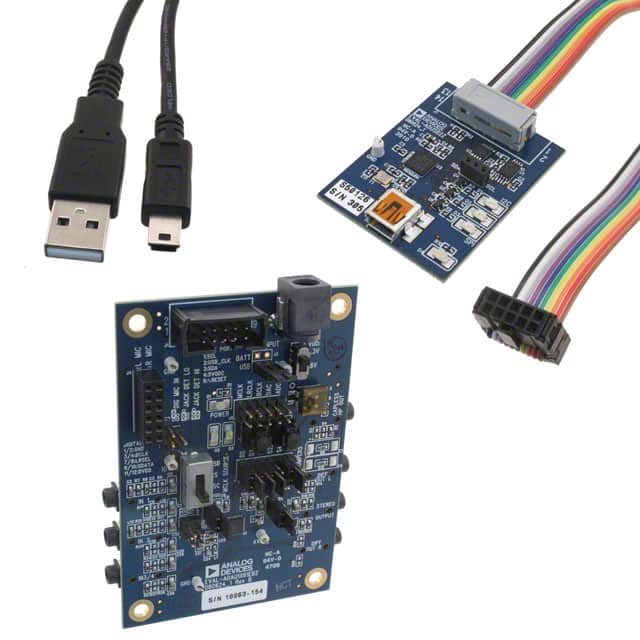

The EVAL-ADAU1761Z from Analog Devices is an evaluation board designed for the ADAU1761 SigmaDSP audio CODEC. This board provides a complete platform for evaluating the performance of the ADAU1761, which integrates a stereo 24-bit audio CODEC with a 28-bit DSP core. The board supports sampling rates from 8 kHz to 96 kHz and includes a GUI tool for easy configuration.
The evaluation board includes single-ended and differential analog inputs and outputs, as well as a stereo capless headphone output. It also features a digital audio interface. The board is supplied with a USBi control interface board, USB cable, software CD, and documentation. The embedded DSP allows for real-time audio processing, making it suitable for applications such as audio effects, equalization, and signal conditioning.
This board is ideal for engineers developing audio systems who need to prototype and test their designs with the ADAU1761. The GUI tool, SigmaStudio, simplifies the programming of the DSP and allows for quick adjustments. The board is designed for ease of use and quick setup, with all necessary cables and software included.
| Qty | Low | High |
|---|---|---|
| 1+ | $353.18 | $353.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is an audio CODEC evaluation board.
Audio.
ADAU1761.
Yes, it includes a DSP.
Stereo, 24-bit, 8 to 96 kHz sampling rate, GUI tool.
Board(s) and Cable(s).
8 to 96 kHz.
