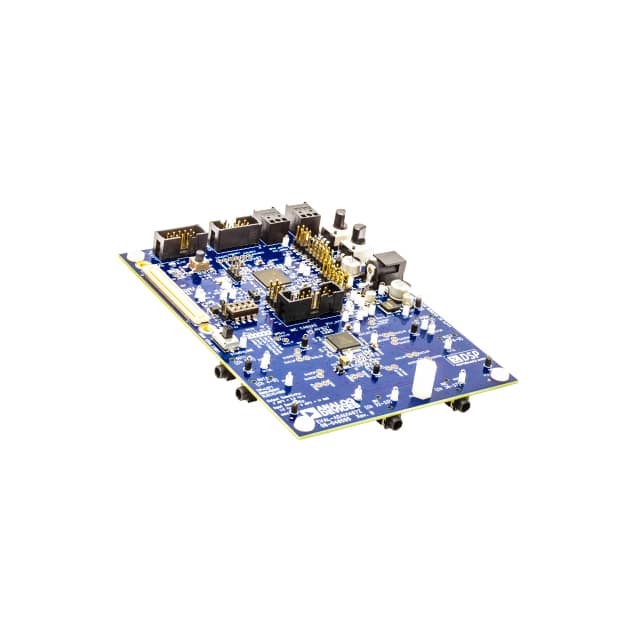

EVAL-ADAU1467Z Evaluation board for the ADAU1467 SigmaDSP audio processor. Features 4 analog inputs, 8 analog outputs, and stereo S/PDIF interface.
Mfr Part #:

EVAL-ADAU1467Z

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
Evaluation board for the ADAU1467 SigmaDSP audio processor. Features 4 analog inputs, 8 analog outputs, and stereo S/PDIF interface.
✓ Total Stock: 2,002 pcs
$ Price Range: $298.98

EVAL-ADAU1467Z Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,002 pcs
On Request
2002 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EVAL-ADAU1467Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Kit Contents
Storage Temperature
Supplied Contents
Supply Voltage
Tape & Reel
Type
Utilized IC
View Similar Products (0)

EVAL-ADAU1467Z Description

Short technical summary and product information.

The EVAL-ADAU1467Z is an evaluation board designed for the ADAU1467 SigmaDSP audio processor from Analog Devices. It provides a complete platform for software development and system evaluation. The board includes 4 analog input channels and 8 analog output channels via the AD1937 audio codec, as well as stereo S/PDIF input and output for digital audio. A self-boot EEPROM enables standalone operation, and headers allow connection to off-board peripherals. The kit includes the EVAL-ADUSB2EBZ USBi communications adapter, a USB cable, and a 6V DC power supply. Programming and configuration are performed using SigmaStudio software, available from Analog Devices. The board is constructed on a 4-layer PCB and is powered by an external 6V DC supply, regulated on-board.

EVAL-ADAU1467Z Quick Information

Product Type: Evaluation and Demonstration Board
Canonical Name: EVAL-ADAU1467Z Evaluation Board for ADAU1467 SigmaDSP Audio Processor
Subcategory: Audio Evaluation Board

EVAL-ADAU1467Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EVAL-ADAU1467Z Estimated Pricing

Qty Low High
1+ $298.98 $298.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

EVAL-ADAU1467Z Features

  • 4 analog input channels for audio signals.
  • 8 analog output channels for audio signals.
  • Stereo S/PDIF input and output for digital audio.
  • Self boot EEPROM for standalone operation.
  • Includes USBi USB adapter for PC connection.

EVAL-ADAU1467Z Applications

  • Audio processing algorithm development and testing.
  • Evaluation of ADAU1467 SigmaDSP processor capabilities.
  • Prototyping audio systems with analog and digital I/O.

EVAL-ADAU1467Z FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage for the EVAL-ADAU1467Z?

6V DC nominal.

Is the EVAL-ADAU1467Z RoHS compliant?

RoHS3 Compliant according to existing data, but status is unverified and low confidence.

What software is required to program the evaluation board?

SigmaStudio software.

How many analog output channels does the board have?

8 analog output channels.

Does the board support S/PDIF digital audio?

Yes, stereo S/PDIF input and output.

What is included in the kit?

Board(s), Cable(s), Power Supply, and USBi adapter.

What is the utilized IC on this evaluation board?

ADAU1467 SigmaDSP audio processor.
