| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,002 pcs
|
2002 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Input Range | |
| Number of A | |
| Number of Bits | |
| Power (Typ) @ Conditions | |
| Sampling Rate (Per Second) | |
| Settling Time | |
| Supplied Contents | |
| Tape & Reel | |
| Utilized IC |

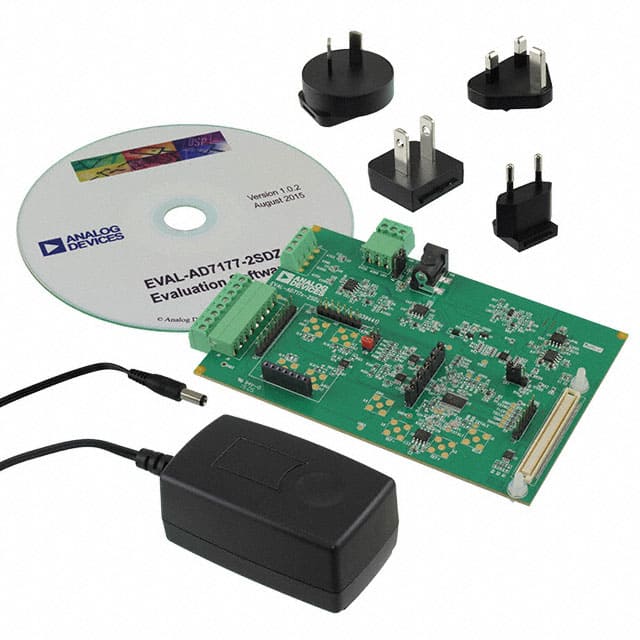

The EVAL-AD7177-2SDZ is a full-featured evaluation board for the AD7177-2, a 32-bit, 10 kSPS sigma-delta ADC with integrated rail-to-rail input buffers and 100 µs settling time. The board includes on-board power regulation, an external amplifier section, and connects to a PC via the SDP-B controller board for control and data analysis using the AD717x Eval+ software. The kit contains the evaluation board, power supply, CD with software, and hardware accessories. Key specifications include 32-bit resolution, 10 kSPS sampling rate, single channel input, and power consumption of 105 mW at 10 kSPS. The board operates with a 7 V to 9 V AC-to-DC adapter and provides regulated 5 V and 3.3 V supplies. The data interface supports DSP, MICROWIRE, QSPI, Serial, and SPI protocols. This evaluation platform is ideal for evaluating the AD7177-2 ADC performance in precision measurement applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $82.85 | $82.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32 bits.
10 kSPS.
100 µs.
DSP, MICROWIRE, QSPI, Serial, and SPI.
Yes, it is listed as RoHS3 compliant.
105 mW at 10 kSPS.
Sigma-Delta.
