EVAL-AD4114SDZ Evaluation board for the AD4114, a 24-bit, 31.25 kSPS sigma-delta ADC with ±10V input range. Supports 16 single-ended or 8 differential channels via SPI interface.
Mfr Part #:

EVAL-AD4114SDZ

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
Evaluation board for the AD4114, a 24-bit, 31.25 kSPS sigma-delta ADC with ±10V input range. Supports 16 single-ended or 8 differential channels via SPI interface.
✓ Total Stock: 2,002 pcs
$ Price Range: $133.07

EVAL-AD4114SDZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,002 pcs
On Request
2002 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EVAL-AD4114SDZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Input Range
Kit Contents
Number of A
Number of Bits
Number of Channels
Power (Typ) @ Conditions
Sampling Rate (Per Second)
Supplied Contents
Tape & Reel
Utilized IC
View Similar Products (0)

EVAL-AD4114SDZ Description

Short technical summary and product information.

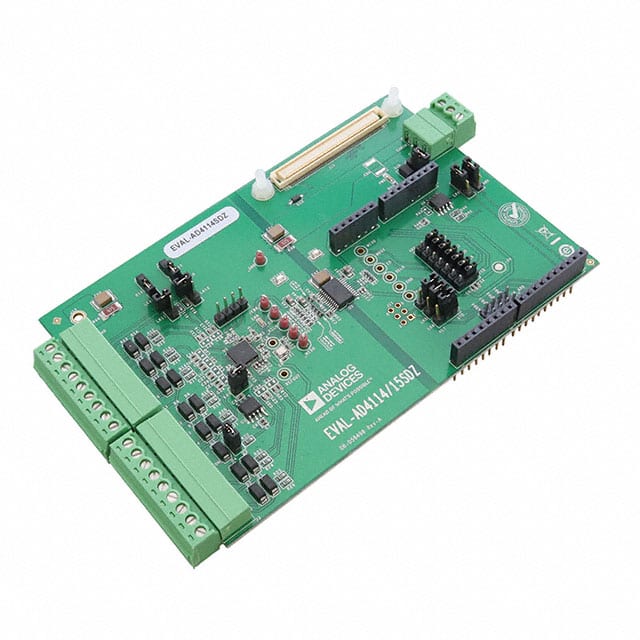

The EVAL-AD4114SDZ is a fully featured evaluation board from Analog Devices for evaluating the AD4114 single-supply, 24-bit, sigma-delta analog-to-digital converter (ADC). It features a ±10 V input voltage range and supports 16 single-ended or 8 fully differential input channels with on-board overvoltage and overcurrent protection.



The board includes voltage references and power and data insulation, and connects to the Analog Devices SDP platform via a 120-pin connector for USB interface to a PC. The AD411x Eval+ evaluation software provides dc time domain analysis with waveform graphs, histograms, and noise analysis.



The AD4114 operates at a sampling rate of 31.25 kSPS with a typical power consumption of 19.5 mW. The evaluation board is supplied with board(s), software, and a screw/washer set. It communicates via a serial SPI interface.

EVAL-AD4114SDZ Quick Information

Product Type: Evaluation Board
Canonical Name: EVAL-AD4114SDZ AD4114 Evaluation Board
Subcategory: Analog to Digital Converters (ADCs)

EVAL-AD4114SDZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EVAL-AD4114SDZ Estimated Pricing

Qty Low High
1+ $133.07 $133.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

EVAL-AD4114SDZ Features

  • 24-bit sigma-delta resolution with 31.25 kSPS sampling rate.
  • ±10 V input voltage range for 16 single-ended or 8 differential channels.
  • On-board overvoltage and overcurrent protection on all channels.
  • SPI serial interface for data communication.
  • Low power consumption of 19.5 mW typical.

EVAL-AD4114SDZ Applications

  • Industrial data acquisition systems.
  • Process control and monitoring.
  • Precision instrumentation.
  • Battery-powered systems requiring low power.

EVAL-AD4114SDZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD4114 ADC?

24 bits.

What is the sampling rate of the EVAL-AD4114SDZ?

31.25 kSPS.

What is the input voltage range of the evaluation board?

±10 V.

How many channels does the EVAL-AD4114SDZ support?

16 single-ended or 8 differential channels.

What data interface does the board use?

Serial SPI.

What is the typical power consumption of the AD4114?

19.5 mW at 31.25 kSPS.

Is the EVAL-AD4114SDZ RoHS compliant?

RoHS3 Compliant (unverified, low confidence).
