EV35-3.0-02-10M

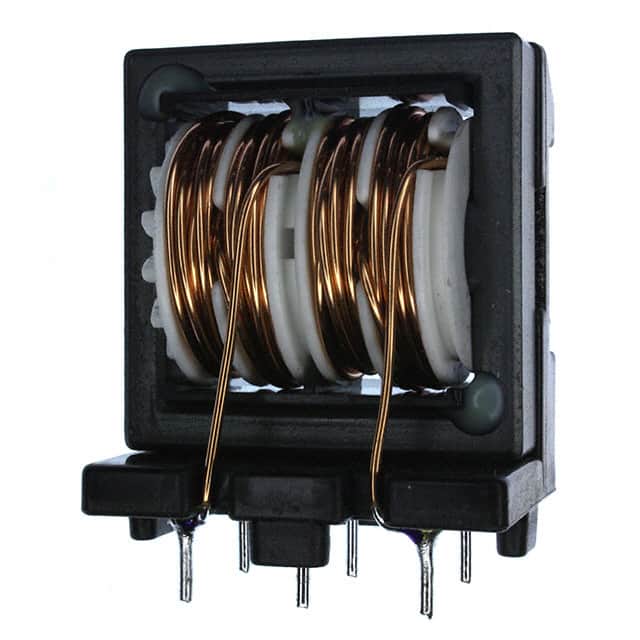

This Schaffner EV35-3.0-02-10M is a common mode choke designed for power line filtering applications. It features a 10mH inductance at 400Hz with ±30% tolerance, a maximum current rating of 3A, and a maximum DC resistance of 72mΩ typical. The component is rated for continuous operating voltage up to 250VAC at 50°C and operates across a frequency range from DC to 400Hz.

The choke offers robust electrical performance with winding-to-winding insulation voltage of 3000VAC guaranteed for 60 seconds at 25°C, and a factory test voltage of 2000VAC for 2 seconds. It can withstand overcurrents of 1.5 times the nominal current for one minute, once per hour. The MTBF exceeds 5,000,000 hours at 40°C and 230V.

The component is housed in a vertical, 4 PC pin through-hole package with dimensions of 36.00mm x 24.50mm x 42.70mm (max height). It is designed for mounting on printed circuit boards with through-hole leads. The choke has a flammability rating of UL 94 V-0 and is RoHS compliant.

Common mode chokes are primarily used to filter noise on AC power lines, preventing noise from entering equipment and suppressing noise generated by equipment such as switch-mode power supplies. This model is suitable for input filters, reducing leaking noise, and applications in office automation, communications, multimedia, and electric ballasts.
