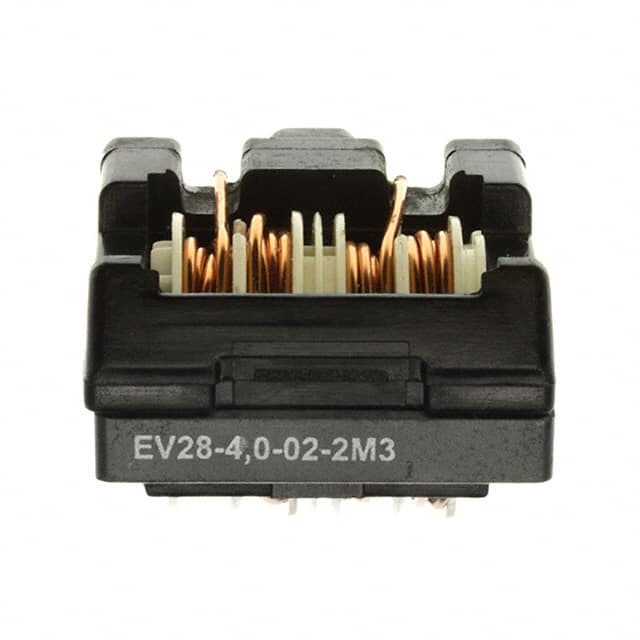

The Schaffner EV28-4.0-02-2M3 is a common mode choke from the EV/EH series designed for power line filtering applications. It features a through hole mounting type with a vertical 4 PC pin package.
Key electrical specifications include a nominal inductance of 2.3 mH at 10 kHz with a tolerance of ±30%, a maximum current rating of 4A, and a maximum DC resistance of 40 mOhm. The component is rated for a maximum continuous operating voltage of 250 VAC at 50°C and operates over a frequency range from DC to 400 Hz.
The choke has a maximum height of 35.70 mm, a length of 29.20 mm, and a width of 21.00 mm. It is designed for an operating temperature range of -25°C to 100°C. The device is RoHS compliant and has a flammability rating of UL 94 V-0.
| Qty | Low | High |
|---|---|---|
| 500+ | $2.94 | $2.94 |
| 1,000+ | $2.88 | $2.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 2.3 mH at 10 kHz with a tolerance of ±30%.
The maximum current rating is 4A.
The operating temperature range is -25°C to 100°C.
The package is a vertical 4 PC pin through hole type.
Yes, the datasheet states it is RoHS compliant.
The maximum DC resistance is 40 mOhm.
The maximum continuous operating voltage is 250 VAC at 50°C.
