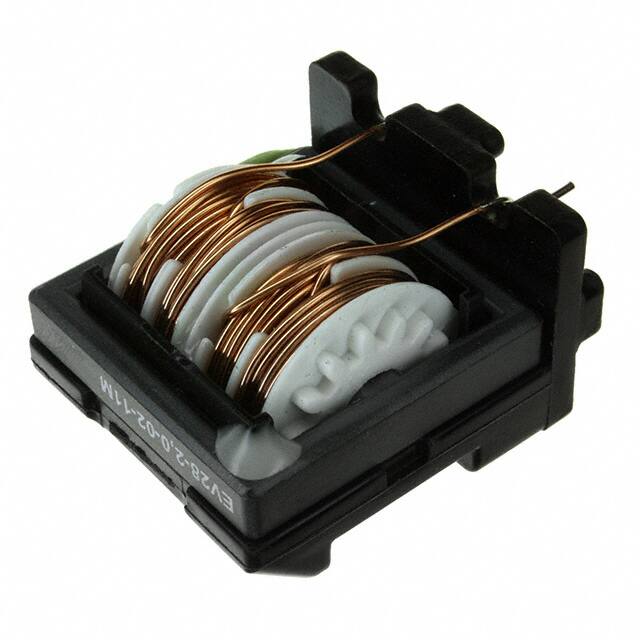

The Schaffner EV28-2.0-02-11M is a common mode choke (CMC) from the EV/EH series, designed for power line filtering applications. It features an inductance of 11 mH (measured at 400 Hz, ±30% tolerance) and a typical DC resistance of 162 mOhm. The component is rated for a maximum continuous current of 2 A and a maximum operating voltage of 250 VAC at 50°C. It operates over a frequency range from DC to 400 Hz and can handle an overcurrent of 1.5 times the nominal current for 1 minute, once per hour.
The winding-to-winding insulation is tested at 3000 VAC for 60 seconds (guaranteed) and 2000 V, 50 Hz for 2 seconds (factory test). The operating temperature range is -25°C to 100°C. The choke is housed in a vertical, through-hole package with 4 PC pins, measuring 29.2 mm in length, 21.0 mm in width, and a maximum height of 35.7 mm. It is constructed with UL 94 V-0 rated materials and has a rated MTBF exceeding 5,000,000 hours at 40°C/230 V per Mil-HB-217F.
Typical applications include input filters for switch mode power supplies, noise reduction in office automation equipment, audio and multimedia devices, and AC/AC converters. The series is RoHS compliant (per datasheet) and uses low magnetic leakage flux construction.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.54 | $4.54 |
| 10+ | $3.74 | $3.74 |
| 25+ | $3.46 | $3.46 |
| 50+ | $3.26 | $3.26 |
| 100+ | $3.08 | $3.08 |
| 250+ | $2.85 | $2.85 |
| 500+ | $2.79 | $2.79 |
| 2,500+ | $2.70 | $2.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous operating voltage is 250 VAC at 50°C.
It is a through hole device with a vertical, 4 PC pin package.
The operating temperature range is -25°C to 100°C.
Yes, the series datasheet states RoHS compliance, though the database entry is unverified.
The nominal inductance is 11 mH at 400 Hz, with a tolerance of ±30%.
The maximum rated current is 2 A.
The typical DC resistance is 162 mOhm with a maximum tolerance of ±15% at 25°C.
