| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
153 pcs
|
153 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Voltage | |
| Contact Form | |
| Contact Rating (Current) | |
| Features | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

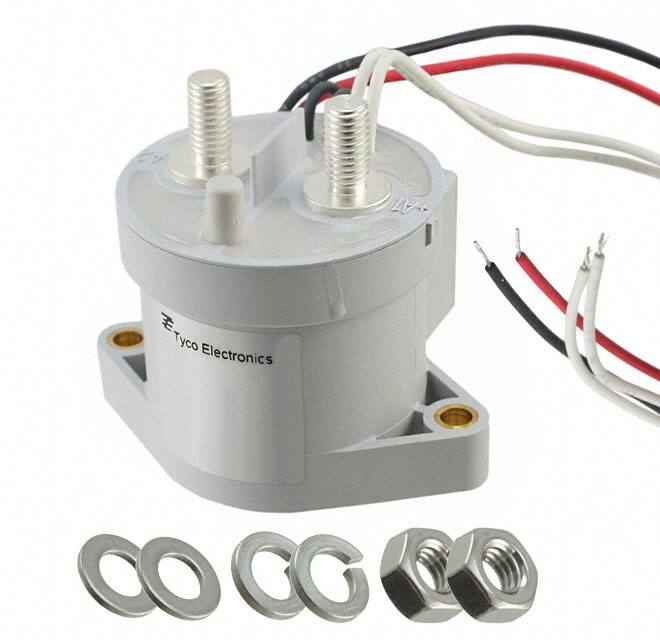

The TE Connectivity EV200HAANA is an electromechanical relay contactor designed for demanding applications. It features a Single Pole Single Throw Normally Open (SPST-NO) contact form with a robust current rating of 500A and a maximum switching voltage of 900VDC.
This contactor is built for reliability, with a coil voltage range of 9-36VDC and specific must-operate and must-release voltages of 9VDC and 6VDC, respectively. It includes features such as an economizer and hermetic sealing, enhancing its durability and performance in various environments.
The EV200HAANA is designed for chassis mounting and utilizes stud and wire lead termination styles for secure connections. Its operating temperature range spans from -40°C to 85°C, making it suitable for a wide array of industrial and aerospace applications. The series is part of the EV200 and KILOVAC product lines.
Key electrical characteristics include a coil current of 130mA, an operate time of 15ms, and a release time of 12ms. While RoHS, REACH, and MSL compliance are listed, these statuses are currently unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 500A.
The maximum switching voltage is 900VDC.
The operating temperature range is -40°C to 85°C.
It is a chassis mount.
The termination styles are stud and wire leads.
The coil voltage range is 9 to 36VDC.
The contact form is SPST-NO (DM) (1 Form X).
