| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
2,006 pcs
|
2006 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
157 pcs
|
157 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Efficiency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The Intel EV1320QI is a highly efficient DC-DC converter specifically engineered for DDR memory termination applications. It provides a compact, non-isolated solution with up to 96% efficiency, suitable for DDR2, DDR3, DDR4, QDR, and low power DDR3/DDR4 JEDEC VTT requirements.
This device operates directly from the VDDQ supply rail and delivers a stable VTT output voltage that tracks VDDQ/2 ± 40mV. It can source and sink up to 2A of continuous output current, with the capability to parallel up to four devices for an 8A VTT current requirement. The EV1320QI features an enable pin with output discharge for S3 (suspend to RAM) states and includes programmable soft-start/soft-shutdown.

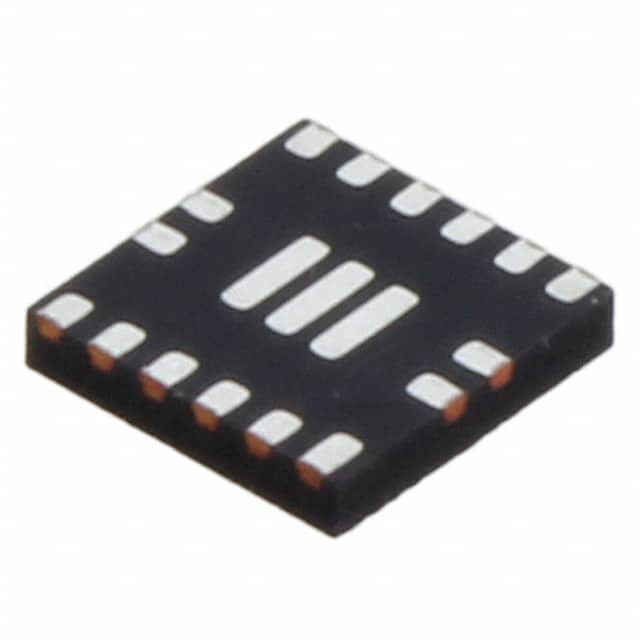

Designed for a small solution footprint, the EV1320QI comes in a 3mm x 3mm x 0.55mm 16-pin QFN package. It requires minimal external MLCC capacitors and no external inductor. Integrated protection features include thermal overload, over-current, short-circuit, and under-voltage protection, ensuring robust operation.
Applications include VTT bus termination for various DDR memory types. The device operates within a -40°C to 85°C temperature range and is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage (VTT) tracks VDDQ/2 ± 40mV, with a typical range of 0.5V to 0.9V.
The EV1320QI operates within a temperature range of -40°C to 85°C.
Yes, the EV1320QI is RoHS3 compliant.
The EV1320QI is available in a 16-QFN (3x3mm) package with an exposed pad, also referred to as 16-UFQFN.
The EV1320QI can source and sink up to 2A of continuous output current.
The EV1320QI supports input voltages from 0.95V to 1.8V and 3V to 3.465V.
