| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Width |

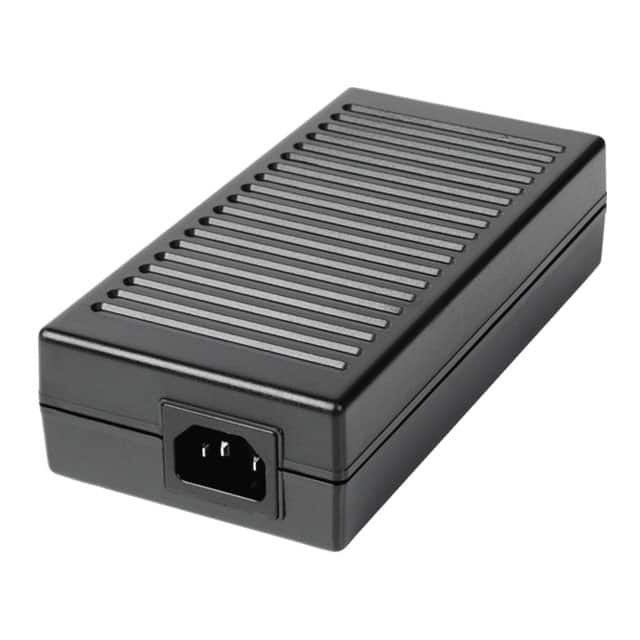

The CUI Inc. ETSA360278UC-P51-WP is a versatile AC-DC desktop power supply designed for commercial ITE applications. It delivers a stable 36V output at up to 2.78A, providing a total power of 100W.
This adapter features a universal input voltage range of 90-264 Vac and operates efficiently, meeting Level V standards. It includes essential protections such as over-voltage, over-current, and short-circuit protection for reliable operation.
The unit is housed in a desktop form factor with Class I safety rating. It connects to the mains via an IEC 320-C14 input connector and provides a 4-pin DIN output connector. The cord length is approximately 39.4 inches (1.00m). Its dimensions are 170.0mm x 85.0mm x 44.0mm.
Designed for commercial use, this power supply is suitable for various ITE (Information Technology Equipment) applications requiring a dependable and efficient power source.
The output voltage is 36 Vdc and the maximum output current is 2.78 A.
The input voltage range is 90-264 Vac.
The operating temperature range is 0°C to 60°C, with linear derating of 2.5% per °C from 41°C to 60°C.
This adapter meets Level V efficiency standards.
The input connector is an IEC 320-C14.
It includes over voltage protection (110-130%), over current protection (110-160%), and short circuit protection with auto restart.
The form factor is Desktop (Class I).
