| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

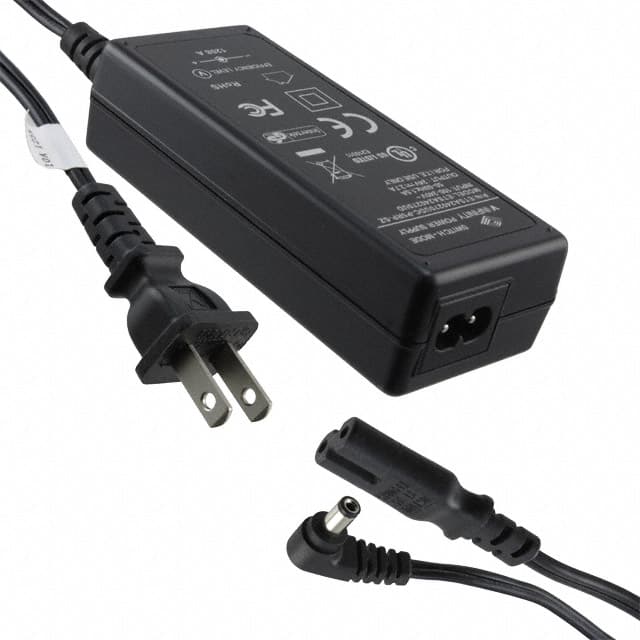

This AC/DC desktop adapter from CUI Inc., part number ETSA240270UDC-P5RP-SZ, delivers a stable 24V output with a maximum current of 2.7A, totaling 60W of power.
Designed for ITE (Commercial) applications, it features Level V efficiency and a compact desktop (Class II) form factor. The adapter has an IEC 320-C8 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D.) with positive center polarization. Its operating temperature range is from 0°C to 40°C.
Key specifications include a low no-load power consumption of 300mW (Max) and a cord length of 39.4 inches (1.00m). The unit is approved by CE, cULus, and GS, making it suitable for North American utilization. It is RoHS3 compliant and has an MSL of 1.
The output voltage is 24V and the output current is 2.7A.
The adapter is rated for 60W.
It meets Level V efficiency.
The operating temperature range is 0°C to 40°C.
It uses an IEC 320-C8 input connector.
The output connector is a Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm with Positive Center polarization.
Yes, it is RoHS3 Compliant.
