| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

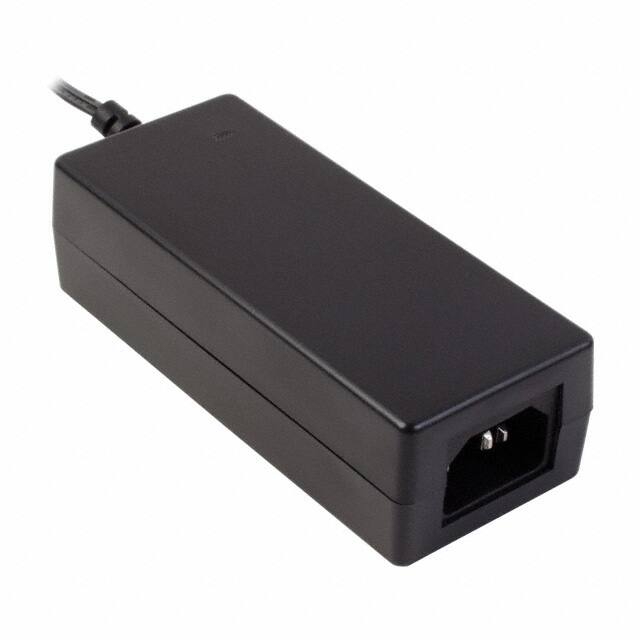

This CUI Inc. ETSA series AC-DC power supply is designed for desktop applications, offering a 60W output power. It provides a single regulated output voltage of 19V at a maximum current of 3.42A. The adapter supports a universal input voltage range of 90 to 264 Vac and operates within a frequency range of 47 to 63 Hz.
Key electrical specifications include line regulation of ±1% and load regulation of ±5%. The unit is equipped with over-voltage and short-circuit protections for enhanced safety. It meets Level V efficiency requirements and has a low no-load power consumption of 300mW maximum.
Mechanically, the adapter has dimensions of 116.0mm x 50.0mm x 31.0mm and features an IEC 320-C8 input connector. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarization. The included cord has a length of 1.00m (39.4").
Safety approvals include CE, cULus, and GS, making it suitable for ITE (Commercial) applications. The operating temperature range is from 0°C to 40°C.
90-264 Vac.
19V at 3.42A (60W).
0°C to 40°C.
116.0mm x 50.0mm x 31.0mm.
Over voltage protection (output clamped by internal zener) and short circuit protection (output shut down, auto restart).
Level V.
Input: IEC 320-C8, Output: Barrel Plug 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
