| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

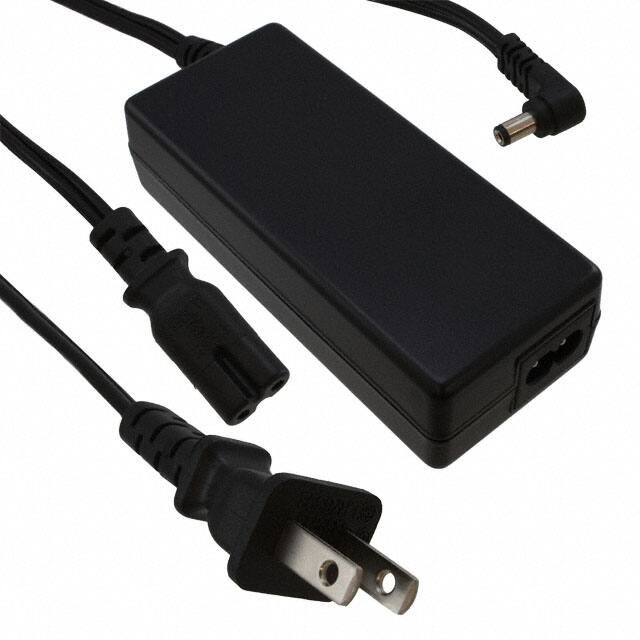

The CUI Inc. ETSA120500UDC-P5RP-SZ is a 60W AC/DC desktop adapter designed for ITE (Commercial) applications. It provides a stable 12V DC output at 5A, with an input voltage range of 90-264 VAC.
This adapter features Level V efficiency, ensuring reduced power consumption. Its compact dimensions are 4.57" L x 1.97" W x 1.22" H (116.0mm x 50.0mm x 31.0mm). The input connector is IEC 320-C8, and the output connector is a Barrel Plug R/A with 2.1mm I.D. x 5.5mm O.D. x 9.5mm dimensions and positive center polarization. The cord length is 39.4" (1.00m).
The operating temperature range is 0°C to 40°C. It has a maximum no-load power consumption of 500mW. The adapter is classified as Desktop (Class II) and is approved by CE, cULus, and GS agencies. It is suitable for use in North America.
This product has been discontinued. Please contact the sales team for further assistance.
It provides a single 12 VDC output at 5 A.
It accepts 90-264 VAC input.
It is rated for 60 W output power.
It uses a right-angle barrel plug with 2.1 mm inner diameter, 5.5 mm outer diameter, and 9.5 mm length.
It uses an IEC 320-C8 input connector.
It operates from 0°C to 40°C.
Maximum no-load power consumption is 500 mW.
