| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

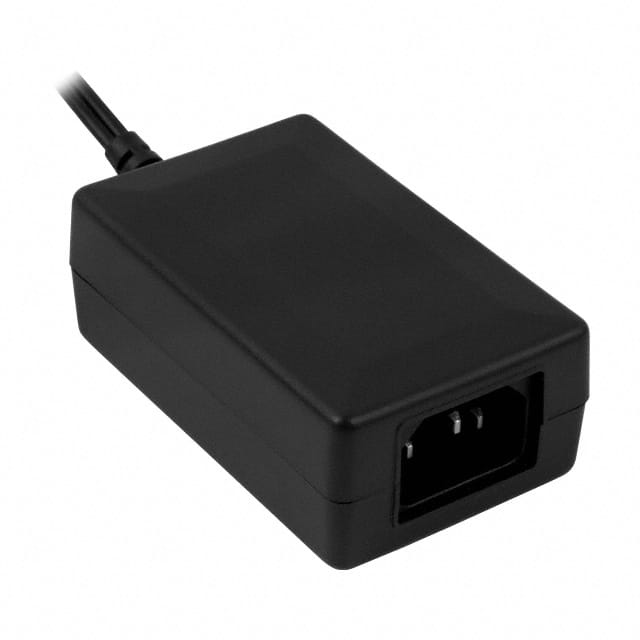

The CUI Inc. ETSA120330UC-P5P-SZ is a 40W AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a current rating of 3.3A.
This adapter features an IEC 320-C8 input connector and a 2.1mm I.D. x 5.5mm O.D. barrel plug output with positive center polarization. It operates within a temperature range of 0°C to 40°C and meets Level V efficiency standards. The compact desktop form factor (Class II) measures 75.5mm x 47.8mm x 28.2mm.
Additional specifications include a low no-load power consumption of 300mW (Max) and a cord length of 1.53m. It is approved by cULus and GS agencies, indicating compliance with safety standards for North American utilization.
12V.
3.3A.
0°C to 40°C.
Input: IEC 320-C8; Output: barrel plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
Desktop (Class II).
cULus, GS.
Level V.
