| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Termination Style | |
| Voltage | |
| Weight | |
| Width |

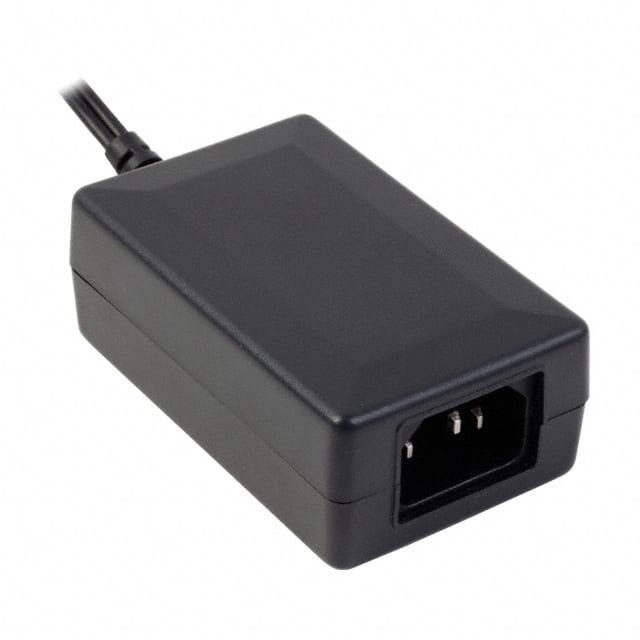

The CUI Inc. ETSA120150UC-P5P-SZ is a versatile AC/DC desktop adapter from the ETSA 18W-C14 series, designed for ITE (Commercial) applications. It provides a stable 12V DC output at a maximum current of 1.5A, delivering up to 18W of power.
This adapter features a universal input voltage range of 90-264 Vac and operates with a frequency of 47-63 Hz. It is designed with over-voltage and short-circuit protections for enhanced safety. The adapter meets Level V efficiency standards and has a low no-load power consumption of 0.3W.
With a compact desktop form factor (Class II), it measures 80.6mm x 50mm x 31mm and weighs 115g (excluding the AC cord). The output connector is a standard barrel plug with a 2.1mm inner diameter and 5.5mm outer diameter, featuring a positive center polarization. The included cord length is 1.53m.
Safety and compliance are ensured with UL/cUL, TUV, and PSE approvals, along with FCC Class B and CE EMI/EMC compliance. The operating temperature range is 0°C to 40°C.
The adapter provides a 12V DC output voltage at a maximum current of 1.5A.
The adapter has a maximum output power of 18W.
The adapter accepts a universal input voltage range of 90-264 Vac.
The operating temperature range is from 0°C to 40°C.
Yes, the adapter is RoHS3 Compliant.
