| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Lead Style | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage |

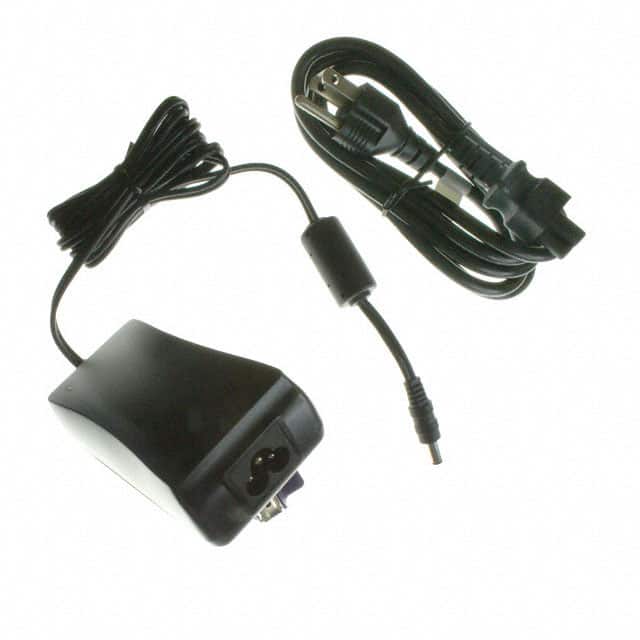

The CUI Inc. ETS240170UTC-P5P-SZ is a 41W AC/DC desktop adapter providing a regulated 24V DC output at a maximum current of 1.7A. It features universal AC input (90-255V ac) and operates within a frequency range of 47-63 Hz.
This adapter is designed for ITE (Commercial) applications and meets EISA / efficiency level IV regulations. It includes features such as short circuit and over load protection, and an LED indicator for power on. The unit has a line regulation of ±1% and a load regulation of ±5%.
Mechanically, the adapter has dimensions of 107.5mm x 56.0mm x 33.7mm and utilizes an IEC 320-C6 input connector and a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output connector. It operates within a temperature range of 0°C to 40°C.
Safety approvals include UL/cUL, CB, and CE, with EMI compliance to FCC Part 15 Class B and CE standards. The adapter is RoHS compliant.
90-255 V AC.
Desktop (Class I) with IEC 320-C6 input connector.
0-40 °C.
24 V DC.
1.7 A.
Level IV.
UL/cUL, CB (IEC60950-1), CE (GS/TUV EN60950-1).
