| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

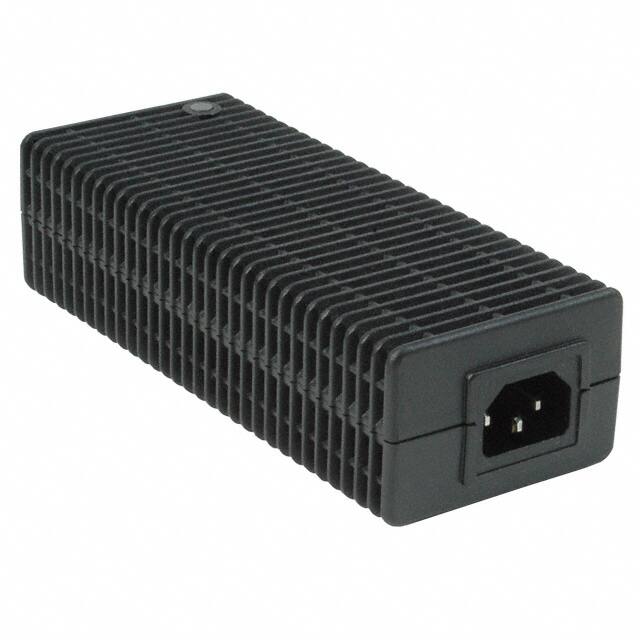

The CUI Inc. ETS190750UC-P51-ET is a versatile AC-DC power supply designed for ITE (Commercial) applications. It delivers a single regulated output of 19V at up to 7.5A, providing a maximum power of 143W.
This power supply operates with a universal input voltage range of 90 to 264 Vac and features Level V efficiency, ensuring optimal power conversion. It includes essential protections such as over-voltage, over-current, and short-circuit protection with auto-restart.
The unit is housed in a desktop form factor (Class I) and comes with an IEC 320-C14 input connector and a 4-pin Power DIN output connector. Its dimensions are 80.6mm x 50.0mm x 31.0mm, making it suitable for various integration needs. The included cord length is 1.20m.
The ETS190750UC-P51-ET provides a 19V output voltage and a maximum output current of 7.5A.
The maximum power output for the ETS190750UC-P51-ET is 143W.
The input voltage range for the ETS190750UC-P51-ET is 90 to 264 Vac.
The operating temperature range for this power supply is 0°C to 40°C.
The ETS190750UC-P51-ET uses an IEC 320-C14 input connector.
The efficiency rating for the ETS190750UC-P51-ET is Level V.
