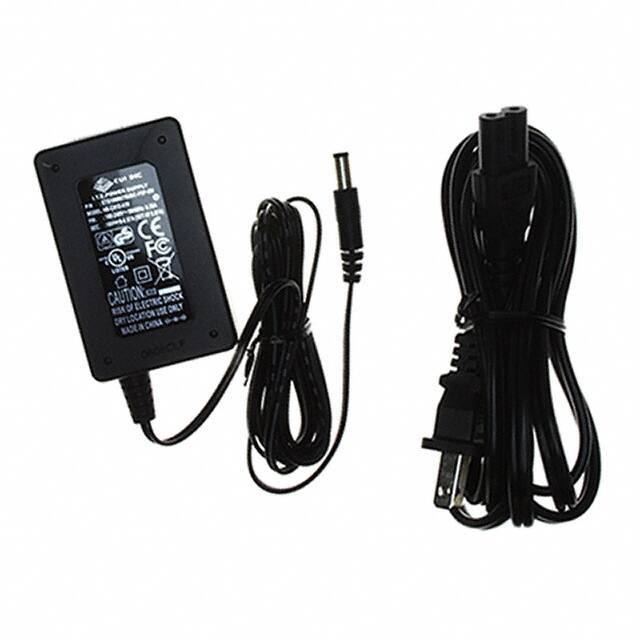

ETS180067SUDC-P5P-KH AC/DC desktop adapter from CUI Inc. providing 18V at 670mA (12W) with Level IV efficiency and a positive center barrel plug output.
Mfr Part #:

ETS180067SUDC-P5P-KH

Mfr Name: CUI Inc.
CUI Inc.
AC/DC desktop adapter from CUI Inc. providing 18V at 670mA (12W) with Level IV efficiency and a positive center barrel plug output.
Stock on Request

ETS180067SUDC-P5P-KH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Type
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Voltage
Width
View Similar Products (0)

ETS180067SUDC-P5P-KH Description

Short technical summary and product information.

The CUI Inc. ETS180067SUDC-P5P-KH is a desktop-style AC/DC power adapter designed for commercial ITE applications. It delivers a regulated 18V output at 670mA with a maximum power of 12W. The adapter features Level IV efficiency and a no-load power consumption of 500mW maximum.



This Class I desktop adapter accepts a standard IEC 320-C6 input connector and provides output through a 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarity. The output cord length is 72 inches (1.83m). The unit is rated for operation in a 0°C to 40°C ambient temperature range.



The adapter is housed in a compact enclosure measuring 74.0mm x 46.5mm x 30.0mm. It is intended for use in North America and is suitable for powering a wide range of commercial electronic equipment.

ETS180067SUDC-P5P-KH Quick Information

Product Type: AC DC Desktop, Wall Adapters
Canonical Name: CUI Inc. ETS180067SUDC-P5P-KH AC/DC Desktop Adapter

ETS180067SUDC-P5P-KH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ETS180067SUDC-P5P-KH Features

  • Delivers 18V output at 670mA (12W).
  • Level IV efficiency with low no-load power.
  • Compact desktop form factor with IEC 320-C6 input.
  • Output via 2.1mm barrel plug, positive center.
  • Rated for 0°C to 40°C operating temperature.

ETS180067SUDC-P5P-KH Applications

  • Ideal for powering commercial ITE equipment.
  • Suitable for networking and peripheral devices.
  • Use in point-of-sale and industrial control systems.

ETS180067SUDC-P5P-KH FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the ETS180067SUDC-P5P-KH?

The adapter provides 18V DC output at 670mA (12W).

What type of output connector does this adapter use?

It uses a 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarity.

What is the operating temperature range?

The operating temperature range is 0°C to 40°C.

What efficiency level does this adapter meet?

It meets Level IV efficiency standards.

What input connector does the adapter use?

It uses an IEC 320-C6 input connector.
