| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

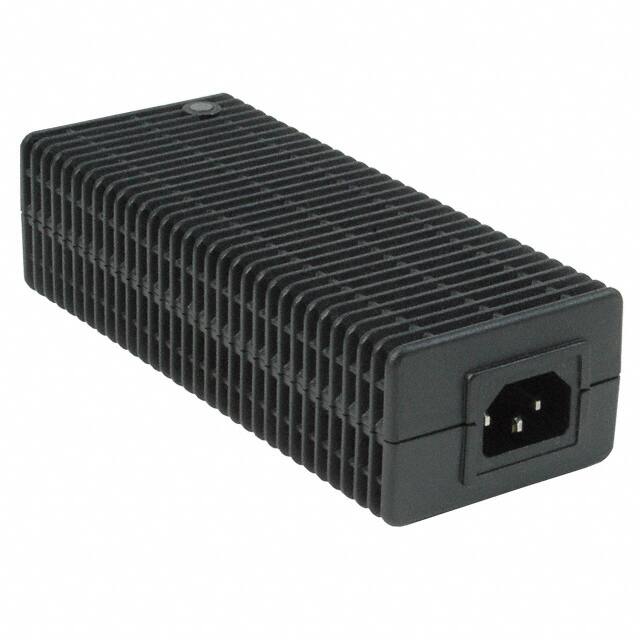

This AC/DC desktop power supply from CUI Inc., model ETS160810UC-P51-ET, delivers a single regulated 16V output at up to 8.1A, providing a total of 130W of power. It is designed for universal input voltage ranging from 90 to 264 Vac and operates within a frequency range of 47 to 63 Hz.
The unit features essential protections including over-voltage, over-current, and short-circuit protection with auto-restart. It complies with IEC 61000-3-2 class D for power factor correction and meets Level V efficiency standards. The power supply is approved by CE, cULus, and TUVgs, making it suitable for ITE (Commercial) applications.
Mechanically, the adapter has dimensions of 80.6mm x 50.0mm x 31.0mm and utilizes an IEC 320-C14 input connector. The output is delivered via a 4-pin Power DIN connector. It operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 500mW maximum. The MTBF is rated at 40,000 hours.
The output voltage is 16 Vdc.
The maximum output current is 8.1 A.
The total power output is 130 W.
The input voltage range is 90 to 264 Vac.
The operating temperature range is 0°C to 40°C.
It has CE, cULus, and TUVgs safety approvals.
The MTBF (Mean Time Between Failures) is 40,000 hours.
