| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

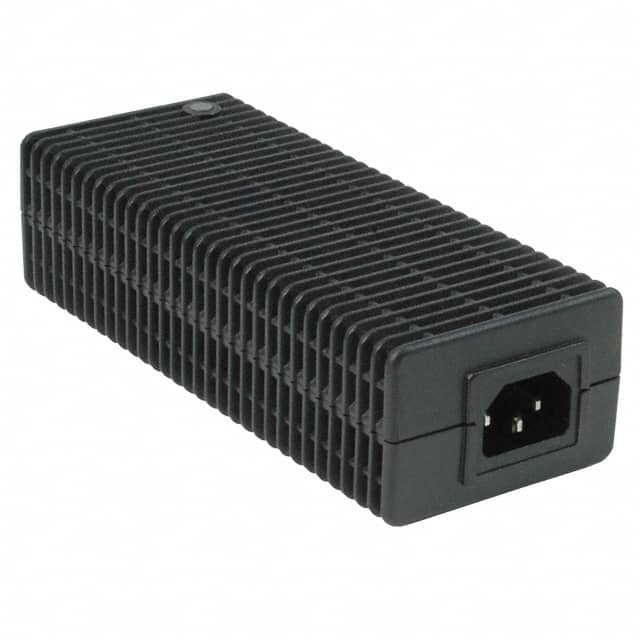

The CUI Inc. ETS150830UC-P51-ET is an AC-DC power supply designed for ITE (Commercial) applications. It provides a single regulated output of 15V at 8.3A, delivering up to 125W of power.
This power supply features a universal input voltage range of 90-264 Vac and operates at a frequency of 47-63 Hz. It meets Level V efficiency standards and includes over-load, over-voltage, and short-circuit protections with auto-restart.
The unit has an IEC 320-C14 input connector and a 4-pin Power DIN output connector. Its dimensions are 80.6mm x 50.0mm x 31.0mm. Safety approvals include CE, cULus, and TUVgs, with compliance to standards like FCC Part 15 Class B and EN 61000 series.
Key features include a wide operating temperature range of 0°C to 40°C and an MTBF of 40,000 hours.
The adapter accepts 90 to 264 Vac at 47-63 Hz.
Output is 15 Vdc at 8.3 A with a maximum power of 125 W.
0°C to 40°C.
Level V efficiency.
UL/cUL (60950-1), EN 60950-1/IEC 60950-1, CSA C22 60950-1-03.
160 x 65 x 49.5 mm (6.3 x 2.56 x 1.95 inch).
Yes, it includes over voltage, over current, and short circuit protection with auto restart.
