| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| HI-POT | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage |

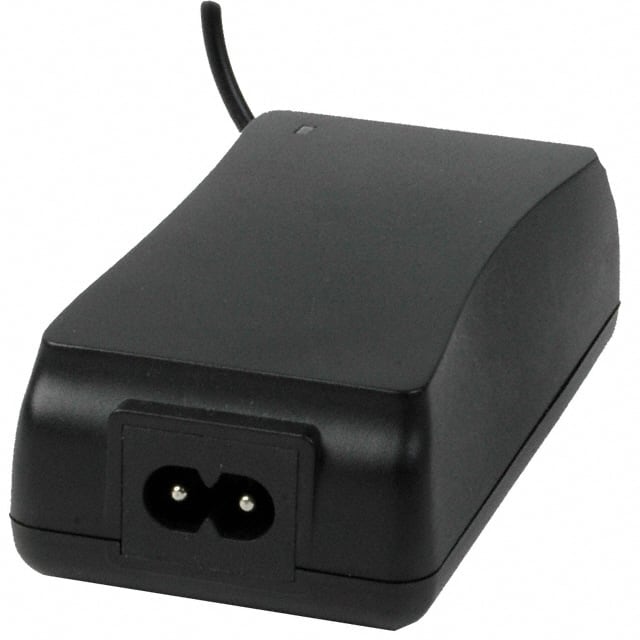

The CUI Inc. ETS150270UTC-P5P-SZ is a 41W AC/DC desktop power supply designed for ITE (Commercial) applications. It provides a regulated 15V DC output at a maximum current of 2.7A.
Key electrical specifications include a universal input voltage range of 90-255V AC and a rated frequency of 50-60Hz. The adapter meets Efficiency Level IV regulations, indicating good energy efficiency. It offers line regulation of ±1% and load regulation of ±5%, ensuring stable output voltage under varying conditions.
Protection features include over-voltage protection (110%-150% V dc) and short circuit protection with auto-restart. The unit has a compact mechanical design with dimensions of 107.5mm x 56.0mm x 33.7mm and utilizes an IEC 320-C6 input connector. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug with positive center polarization.
Safety and EMI standards met include CB, CE, FCC Part 15 Class B, and EN55022/EN55024. The operating temperature range is 0°C to 40°C. This model is RoHS3 compliant and has an MSL of 1 Unlimited.
The input voltage range is 90-255 V AC at 47-63 Hz.
The adapter is packaged in a box.
0°C to 40°C.
15V DC.
2.7A.
Level IV.
UL/cUL, CB (IEC60950-1), CE (GS/TUV EN60950-1).
