| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

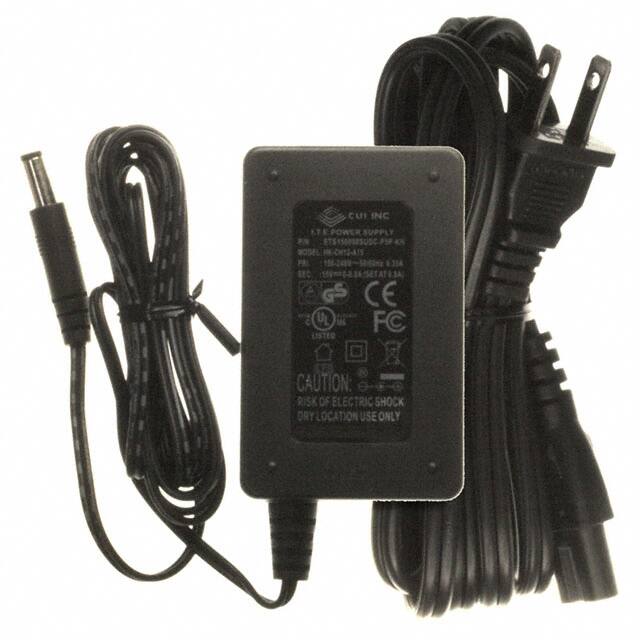

The CUI Inc. ETS150080SUDC-P5P-KH is an AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 15V output with a maximum current of 800mA, providing a total power of 12W.
This adapter meets Level IV efficiency standards and operates within a temperature range of 0°C to 40°C. It features a low no-load power consumption of 500mW (Max).
The unit has an IEC 320-C6 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The integrated cord measures 72 inches (1.83m) in length. Its dimensions are 74.0mm x 46.5mm x 30.0mm.
Compliance includes CB and CE certifications. The adapter is designed as a Desktop (Class I) form factor and is suitable for use in North America.
The ETS150080SUDC-P5P-KH provides an output voltage of 15V and a maximum output current of 800mA.
This adapter has a power rating of 12W.
The operating temperature range for the ETS150080SUDC-P5P-KH is 0°C to 40°C.
It features an IEC 320-C6 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization.
The adapter has an efficiency rating of Level IV.
