| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

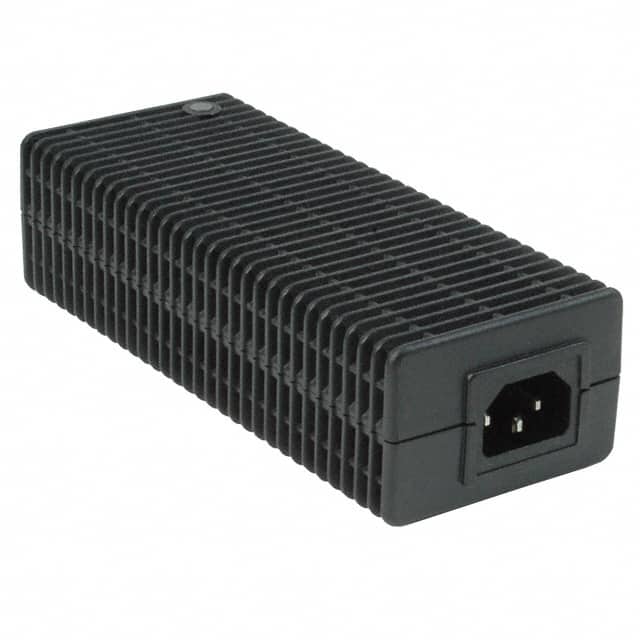

This AC/DC desktop power supply from CUI Inc., part number ETS1201000UC-P51-ET, delivers a stable 12Vdc output with a maximum current of 10A, providing up to 120W of power. It is designed for universal input voltage ranging from 90 to 264 Vac and complies with Level V efficiency standards.
The power supply includes essential protections such as over-voltage, over-current, and short-circuit protection with auto-restart. It meets various safety and compliance standards including UL/cUL, EN, and CSA, along with FCC Part 15 Class B and CE for EMI/EMC.
With a compact desktop form factor (Class I), it features an IEC 320-C14 input connector and a 4-pin Power DIN output connector. The operating temperature range is 0°C to 40°C, and it has an MTBF of 40,000 hours. This model is discontinued.
The output voltage is 12 Vdc.
The maximum output current is 10 A.
The total power output is 120 W.
The input voltage range is 90 to 264 Vac.
The operating temperature range is 0°C to 40°C.
Yes, it is RoHS3 Compliant.
