| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Width |

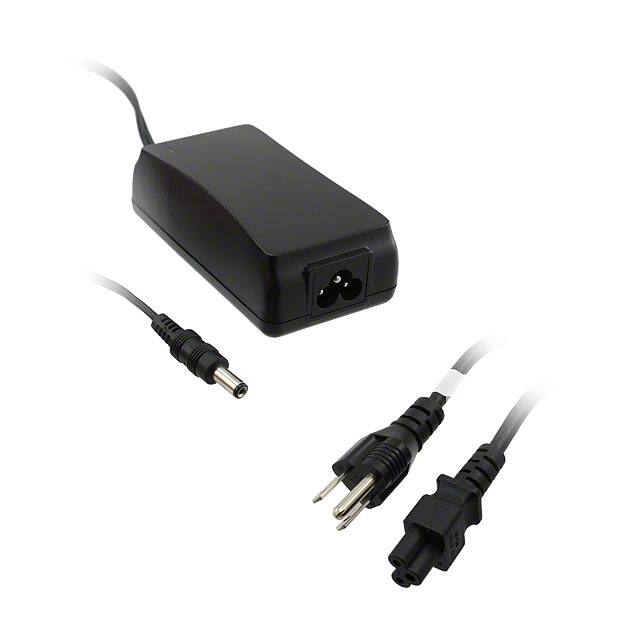

The CUI Inc. ETS090400UTC-P5P-SZ is a 40W desktop switching power supply designed for ITE (Commercial) applications. It provides a regulated 9V DC output at a maximum current of 4A, delivering up to 36W of power.
Key features include universal AC input (90-255V ac) with an IEC 320-C6 input connector and a corded input type. The output is delivered via a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The adapter operates within a temperature range of 0°C to 40°C and meets Efficiency Level IV regulations.
Protection features include short circuit and overload protection, as well as over-voltage protection. The dimensions are 107.5mm x 56.0mm x 33.7mm. This model is RoHS compliant and designed for desktop (Class I) form factor.
The nominal output voltage is 9V dc.
The maximum output current is 4A.
The maximum output power is 36W.
The adapter accepts a universal input voltage range of 90 to 255 V ac.
It uses an IEC 320-C6 input connector.
The dimensions are 107.5mm x 56.0mm x 33.7mm.
The operating temperature range is 0°C to 40°C.
