Mfr Part #:

ETS090220UTC-P5P-SZ

Mfr Name: CUI Inc.

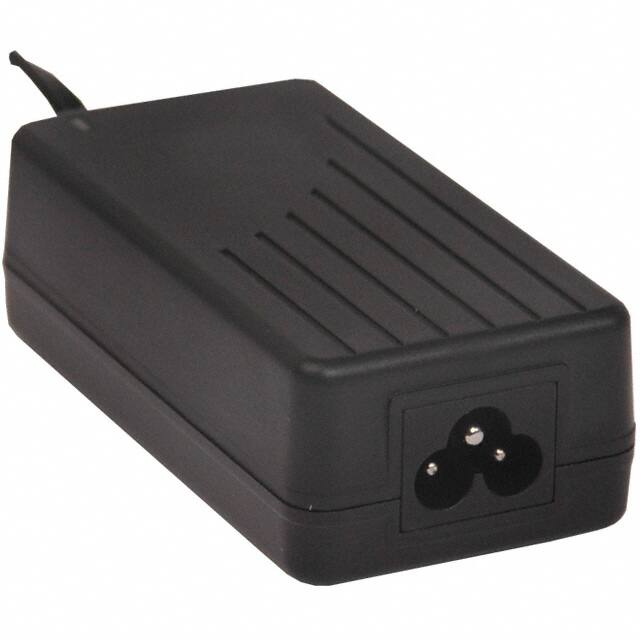

The CUI Inc. ETS090220UTC-P5P-SZ is a 20W AC/DC desktop adapter providing a 9V output at 2.2A. It features Level V efficiency and a compact desktop form factor.

Stock on Request

ETS090220UTC-P5P-SZ Description

Short technical summary and product information.

This AC/DC desktop adapter from CUI Inc., part number ETS090220UTC-P5P-SZ, delivers 20W of power with a 9V output voltage and a maximum current of 2.2A. Designed for ITE commercial applications, it operates within a wide input voltage range of 90-255 VAC and meets Level V efficiency standards. The adapter utilizes an IEC 320-C6 input connector and a 2.1mm I.D. x 5.5mm O.D. barrel plug output connector.

With dimensions of 99.0mm x 51.0mm x 31.7mm, this Class I desktop adapter is suitable for various commercial applications. It operates reliably in temperatures ranging from 0°C to 40°C and features a cord length of 1.00m. The positive center polarization ensures correct connection. Compliance is noted with CB and CE certifications.

ETS090220UTC-P5P-SZ Quick Information

Product Type: AC/DC Desktop Adapter

Series: ETS 20W

Canonical Name: AC/DC Desktop Adapter

Subcategory: AC/DC Desktop, Wall Adapters

ETS090220UTC-P5P-SZ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ETS090220UTC-P5P-SZ Features

20W AC/DC desktop power adapter
9V output voltage at 2.2A
Level V efficiency rating
IEC 320-C6 input connector
Compact desktop form factor

ETS090220UTC-P5P-SZ Applications

For commercial ITE equipment power
Suitable for desktop peripheral devices
Used in networking and communication gear
Powers point-of-sale terminal systems
Ideal for test and measurement instruments

ETS090220UTC-P5P-SZ FAQs

5 frequently asked questions generated from this part’s specifications.

What is the output voltage and current of the ETS090220UTC-P5P-SZ adapter?

The ETS090220UTC-P5P-SZ adapter provides a 9V output voltage and a maximum current of 2.2A.

What is the power rating of the CUI Inc. ETS090220UTC-P5P-SZ adapter?

The power rating of the ETS090220UTC-P5P-SZ adapter is 20W.

What is the operating temperature range for this AC/DC adapter?

The operating temperature range for the ETS090220UTC-P5P-SZ adapter is 0°C to 40°C.

What type of input connector does the ETS090220UTC-P5P-SZ use?

The ETS090220UTC-P5P-SZ uses an IEC 320-C6 input connector.

What are the dimensions of the ETS090220UTC-P5P-SZ adapter?

The dimensions of the ETS090220UTC-P5P-SZ adapter are 99.0mm x 51.0mm x 31.7mm.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	CUI Inc.
Applications	ITE (Commercial)
Approval Agency	CB, CE
Cord Length	1.00m (39.4")
Current	2.2A
Dimensions	99.0mm x 51.0mm x 31.7mm (3.90" L x 2.01" W x 1.25" H)
Efficiency	Level V
Form	Desktop (Class I)
Form Factor	Desktop (Class I)
Height	31.7mm (1.25")
Input Connector	IEC 320-C6
Input Type	Cord
Input Voltage	90 ~ 255 VAC
Length	99.0mm (3.90")
No Load Power Consumption	500mW (Max)
Operating Temperature	0°C ~ 40°C
Output Connector	Barrel Plug 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Output Current	2.2A
Output Voltage	9V
Polarization	Positive Center
Power	20W
Power (Watts)	20 W
Region Utilized	North America
Voltage	9V
Width	51.0mm (2.01")
