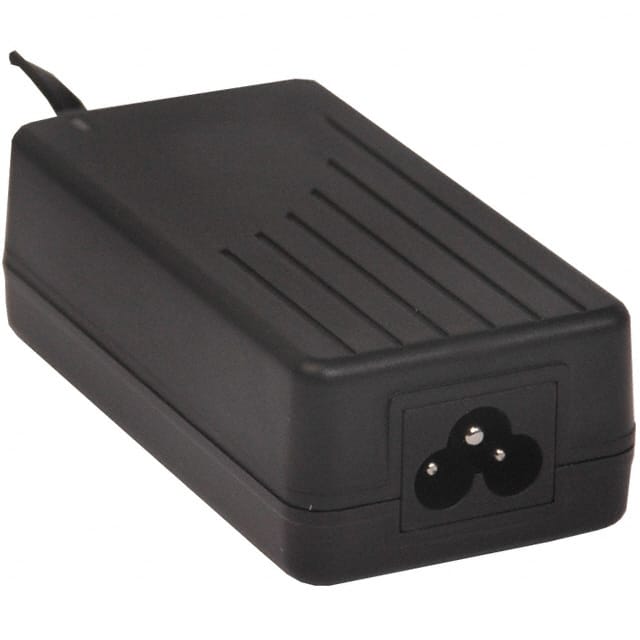

The CUI Inc. ETS060330UTC-P5P-SZ is a 20W AC/DC desktop adapter designed for ITE (Commercial) applications. It operates with an input voltage suitable for North America and features an IEC 320-C6 input connector.
This adapter delivers a stable 6V output at 3.3A, utilizing a standard barrel plug with dimensions of 2.1mm I.D. x 5.5mm O.D. x 9.5mm and positive center polarization. The unit operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 500mW maximum, meeting Level IV efficiency standards.
With physical dimensions of 99.0mm x 51.0mm x 31.7mm, it is designed as a desktop unit (Class I). The adapter is RoHS3 Compliant and has an MSL rating of 1. It is noted as discontinued by the manufacturer, with a recommendation to contact their sales team for further information or alternatives.
The ETS060330UTC-P5P-SZ adapter has an output power of 20 W.
This adapter provides an output voltage of 6V and an output current of 3.3A.
The adapter uses an IEC 320-C6 input connector.
The adapter measures 99.0mm in length, 51.0mm in width, and 31.7mm in height.
The operating temperature range is 0°C to 40°C.
Yes, the adapter is RoHS3 Compliant.
