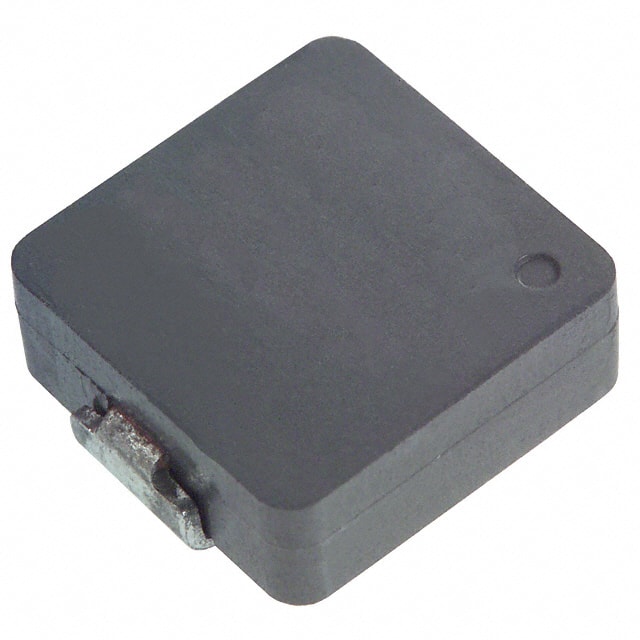

ETQ-P4LR36WFC The Panasonic ETQ-P4LR36WFC is a fixed inductor featuring a 360nH inductance and a 24A current rating. It is designed for surface mounting.
Mfr Part #:

ETQ-P4LR36WFC

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic ETQ-P4LR36WFC is a fixed inductor featuring a 360nH inductance and a 24A current rating. It is designed for surface mounting.
✓ Total Stock: 12,000 pcs

ETQ-P4LR36WFC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ETQ-P4LR36WFC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Shielding
Termination Style
Test Frequency
Tolerance
Type
Width
View Similar Products (0)

ETQ-P4LR36WFC Description

Short technical summary and product information.

The Panasonic ETQ-P4LR36WFC is a fixed inductor from the ETQ-P4L series, designed for power applications. It offers an inductance of 360 nH with a tolerance of ±20% and a low DC resistance of 1.1 mOhms.



This inductor has a high maximum DC current rating of 24 A, making it suitable for demanding power circuits. It features a drum core, wirewound construction and is shielded for reduced electromagnetic interference. The operating temperature range is from -40°C to +150°C.



Designed for surface mounting, the ETQ-P4LR36WFC comes in a 2-SMD, J-Lead package. Its dimensions are 11.50mm in length, 10.00mm in width, and 4.00mm in height. The material is a metal composite, and it is supplied on a reel with a factory pack quantity of 2000 units.

ETQ-P4LR36WFC Quick Information

Product Type: Fixed Inductor
Series: ETQ-P4L
Canonical Name: Panasonic ETQ-P4LR36WFC Fixed Inductor
Subcategory: Inductors, Chokes & Coils

ETQ-P4LR36WFC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ETQ-P4LR36WFC Features

  • 360nH inductance with ±20% tolerance.
  • High 24A maximum DC current rating.
  • Low 1.1mOhm DC resistance.
  • Shielded drum core wirewound construction.
  • Surface mountable 2-SMD, J-Lead package.

ETQ-P4LR36WFC Applications

  • Suitable for power supply circuits.
  • Used in high current applications.
  • Ideal for DC-DC converters.
  • Effective in noise filtering.

ETQ-P4LR36WFC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the ETQ-P4LR36WFC?

The inductance is 360 nH.

What is the current rating for the ETQ-P4LR36WFC?

The maximum DC current rating is 24 A.

What is the DC Resistance (DCR) of this inductor?

The DC Resistance is 1.1 mOhms.

What type of inductor is the ETQ-P4LR36WFC?

It is a Drum Core, Wirewound type inductor.

What are the dimensions of the ETQ-P4LR36WFC?

The dimensions are 11.50mm L x 10.00mm W x 4.00mm H.

What is the operating temperature range for this inductor?

The operating temperature range is -40 C to +150 C.

How is the ETQ-P4LR36WFC packaged?

It is supplied on a Reel in a 2-SMD, J-Lead package with a factory pack quantity of 2000.
