| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

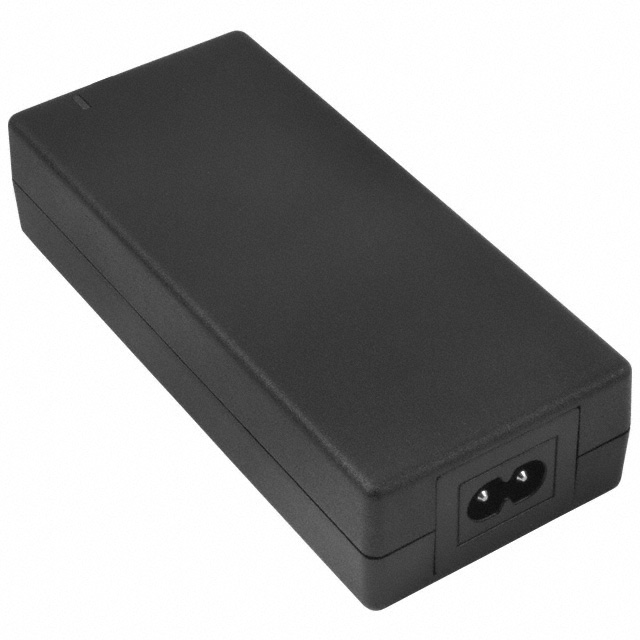

The CUI Inc. ETMA240250UD-P5RP-IC is an AC/DC desktop adapter designed for various applications, including medical use. This adapter delivers a power output of 60W with a stable 24V output voltage and a maximum output current of 2.5A.
It features Level V efficiency, ensuring optimal power usage. The adapter operates within a wide input voltage range of 90-264 VAC and has a low no-load power consumption of 300mW maximum. Its physical dimensions are 132.0mm x 58.0mm x 30.5mm, making it a compact desktop unit.
The ETMA240250UD-P5RP-IC utilizes an IEC 320-C8 input connector and a Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm output connector. The input cord is sold separately and has a length of 72 inches (1.83m). The adapter is designed for international use and meets several standard certifications including EN, FCC, SIQ, TUV, and UL.
Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. The operating temperature range is from 0°C to 40°C.
The output voltage is 24V DC.
The adapter is a desktop (Class II) form factor.
The operating temperature range is 0°C to 40°C.
2.5A.
IEC 320-C8.
Barrel plug R/A, 2.1mm ID x 5.5mm OD x 9.5mm, positive center.
It is approved by EN, FCC, SIQ, TUV, UL and meets standards 55011 Class B, 60601-1, 61000-3-2, 61000-3-3, 61000-6-1, 61010-1.
