| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

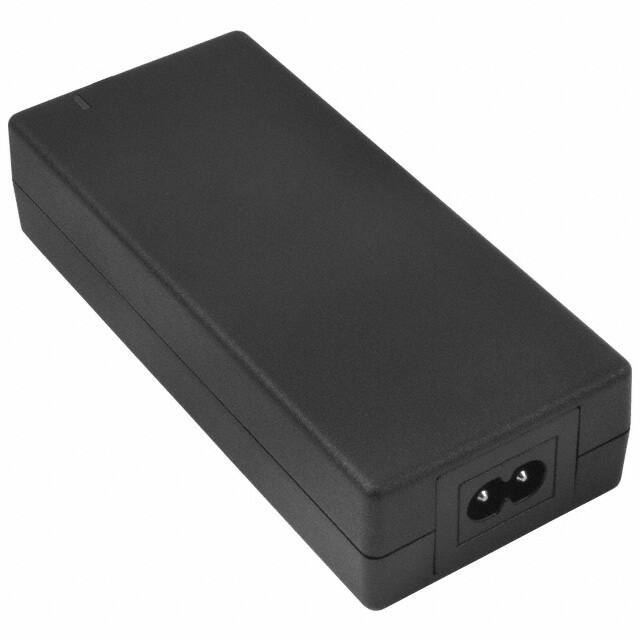

The CUI Inc. ETMA150400UD-P6P-IC is a versatile AC/DC desktop adapter designed for international use, delivering a stable 15VDC output with a maximum current of 4A, totaling 60W of power.
This adapter operates within a wide input voltage range of 100-240 VAC and features an IEC 320-C8 input connector. The output is provided via a standard barrel plug with a positive center, measuring 2.5mm ID and 5.5mm OD. Its compact dimensions are 132.0mm x 58.0mm x 30.5mm, making it suitable for various applications.
Designed for efficiency, it meets Level V standards and has a low no-load power consumption of 300mW maximum. The operating temperature range is from 0°C to 40°C. Compliance is indicated with agencies such as EN, FCC, SIQ, TUV, and UL, and it adheres to standards including 60601-1 and 61000-3-2.
This adapter is specifically suited for medical applications and is RoHS3 compliant. The unit is classified as Desktop (Class II) and comes with a 48-inch cord.
0°C to 40°C.
15 VDC at 4 A.
100-240 VAC.
Desktop (Class II).
Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm, center positive.
60 W.
Yes, it is rated for medical applications.
