| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

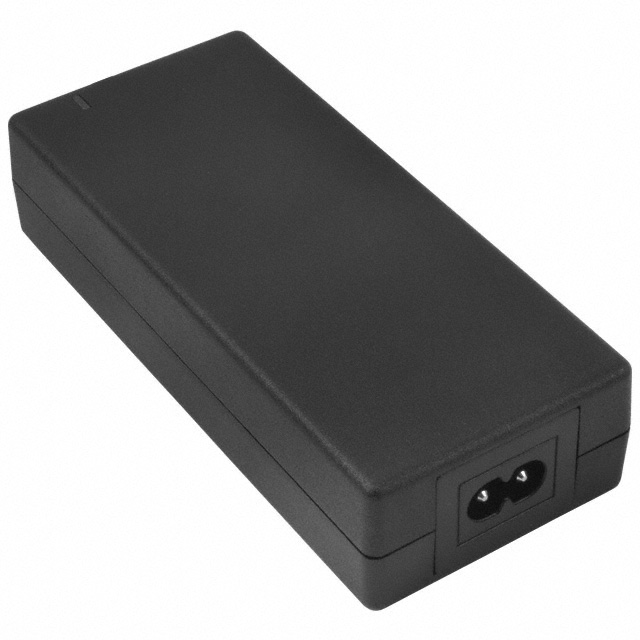

The CUI Inc. ETMA120500UD-P6P-IC is an AC/DC external desktop adapter designed for reliable power conversion. It delivers a stable 12V output at a maximum current of 5A, providing a total power of 60W. This adapter meets Level V efficiency standards, minimizing energy waste.
Designed for demanding environments, it operates within a temperature range of 0°C to 40°C. The input voltage range is broad, accepting 90 to 264 VAC, making it suitable for international use. Key features include an IEC 320-C8 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm).
With dimensions of 132.0mm x 58.0mm x 30.5mm, it has a compact desktop form factor (Class II). The adapter is specifically approved for medical applications and complies with various international standards including EN, FCC, SIQ, TUV, and UL. It also adheres to RoHS3 compliance.
90-264 VAC.
Box.
0°C to 40°C.
12V at 5A.
Level V.
Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm, positive center.
EN, FCC, SIQ, TUV, UL.
