| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

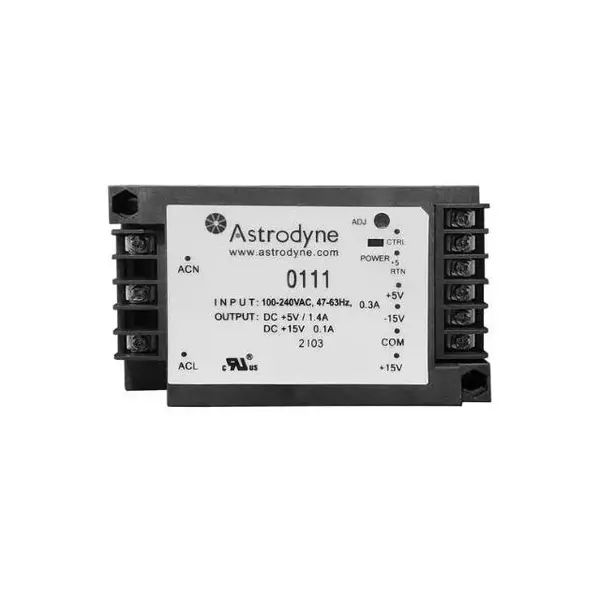

The Astrodyne TDI ETCA-0111 is a 10W ultraminiature encapsulated AC DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 90 to 264 VAC and provides three distinct output voltages: +5V, +15V, and -15V. The converter boasts an efficiency of 71% and features universal input capabilities.
With a power rating of 10W, the ETCA-0111 is suitable for various electronic designs. Its dimensions are 65.0mm x 45.0mm x 21.6mm, making it compact for board mounting. The unit is designed for through-hole mounting and adheres to the 60950-1 standard, with approvals from CB, CE, cURus, and UL agencies. The operating temperature range is from 0°C to 40°C.
Key electrical specifications include line regulation of ±1% and load regulation of ±0.5%. The output currents are 1.4A for the first channel and 100mA for the second and third channels. The package type is a 9-DIP Module with 7 leads. The product is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
90 to 264 VAC.
9-DIP Module, 7 Leads.
0°C to 40°C.
5V at 1.4A, 15V at 100mA, -15V at 100mA.
71%.
65.0mm x 45.0mm x 21.6mm.
Through Hole.
