| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| SVHC Present | |
| Supplier Device Package | |
| Voltage |
The Intel ET4040QI is a high-speed, high-density, monolithic powertrain integrated circuit (IC) with integrated sensing features. Optimized for low duty cycle operation, it is an ideal solution for FPGA core, processor, or DDR memory applications.
This IC maintains excellent efficiency at operating frequencies of 1 MHz or greater, achieving 95% peak efficiency at 600 KHz (1.8 V 10A) and a maximum operating frequency of 3 MHz. Its design results in a 35% improvement in power density compared to competing solutions, utilizing 50% to 75% less inductance and significantly less capacitance.
The ET4040QI enables very high efficiency delivery for single- and multi-phase controllers. As a monolithic driver plus MOSFET, it offers significantly better reliability and thermal performance. It is compatible with Pb-free manufacturing lines and is RoHS-compliant.

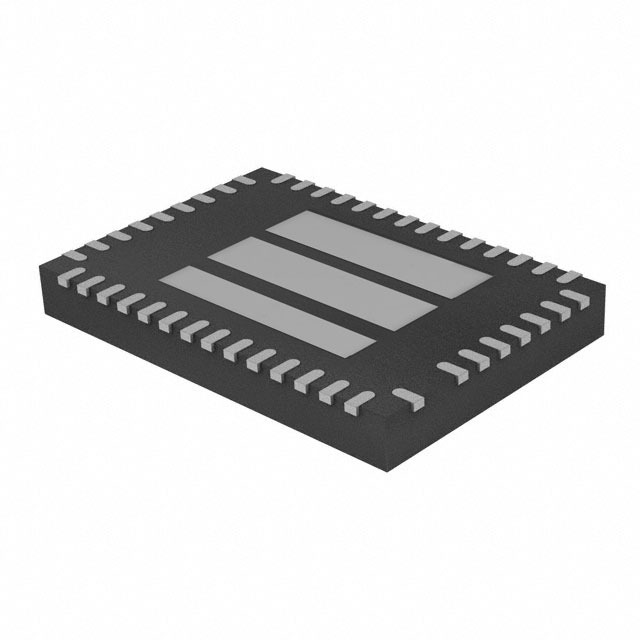

Packaged in a 46-QFN (5.5x7.5) with an exposed pad, the ET4040QI is designed for surface mounting. It operates within a voltage range of 4.5V to 14.5V and has an operating temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ET4040QI has a peak efficiency of 95% at 600 KHz (1.8 V 10A).
The maximum operating frequency for the ET4040QI is 3 MHz.
The ET4040QI operates within a voltage range of 4.5V to 14.5V.
The operating temperature range for the ET4040QI is -40°C to 85°C.
The ET4040QI is a surface mount device.
The ET4040QI is supplied in a 46-VFQFN Exposed Pad package, also referred to as 46-QFN (5.5x7.5).
