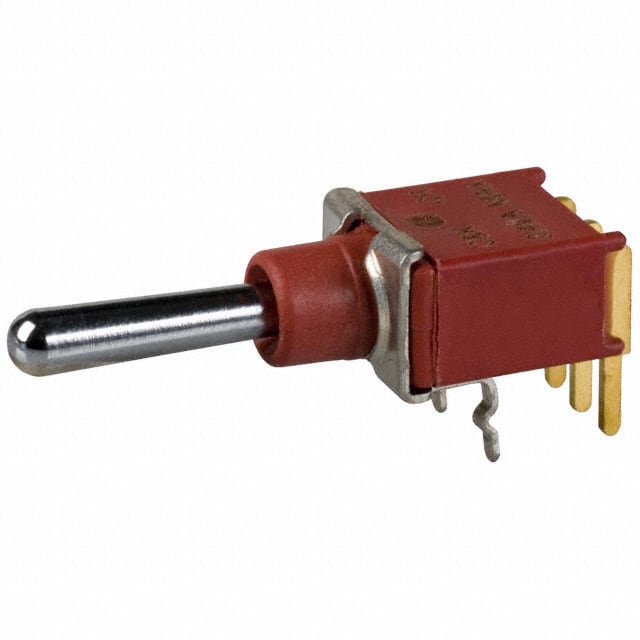

ET05SD1ABE The C&K Components ET05SD1ABE is a toggle switch with an SPDT circuit, rated for 0.4VA (AC/DC) and 20V. It features a through hole, right angle mounting type.
Mfr Part #:

ET05SD1ABE

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components ET05SD1ABE is a toggle switch with an SPDT circuit, rated for 0.4VA (AC/DC) and 20V. It features a through hole, right angle mounting type.
✓ Total Stock: 35,000 pcs
$ Price Range: $0.75

ET05SD1ABE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
35,000 pcs
On Request
35000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ET05SD1ABE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Bushing Thread
Circuit
Current Rating (Amps)
Features
Illumination
Ingress Protection
Lead Style
Mounting Type
Operating Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

ET05SD1ABE Description

Short technical summary and product information.

This C&K Components ET05SD1ABE is a single-pole, double-throw (SPDT) toggle switch designed for various applications. It offers a current rating of 0.4VA (AC/DC) and a voltage rating of 20V.



The switch features a standard round actuator and a Mom-Off-Mom function. It is designed for through-hole mounting with a right-angle orientation and utilizes PC pin termination style. The operating temperature range is from -30°C to 85°C.



With an ingress protection rating of IP57, this toggle switch is dust protected and waterproof. It also includes features such as epoxy sealed terminals for enhanced durability. The RoHS status is compliant with RoHS3, and it is unaffected by REACH regulations.

ET05SD1ABE Quick Information

Product Type: Toggle Switch
Canonical Name: C&K Components ET05SD1ABE SPDT Toggle Switch
Subcategory: Toggle Switch

ET05SD1ABE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ET05SD1ABE Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ET05SD1ABE Features

  • SPDT circuit for versatile switching.
  • Rated for 0.4VA (AC/DC) current.
  • Operates at up to 20V.
  • Through hole, right angle mounting.
  • IP57 dust protected and waterproof.

ET05SD1ABE Applications

  • Ideal for control panel applications.
  • Suitable for signal routing tasks.
  • Used in electronic equipment interfaces.
  • Applicable in harsh environment settings.

ET05SD1ABE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the circuit configuration of the switch?

The switch has an SPDT (Single Pole Double Throw) circuit configuration.

What is the current rating of the switch?

The switch has a current rating of 0.4A (AC/DC).

What is the operating voltage of the switch?

The switch operates at 20V.

What is the ingress protection rating?

The ingress protection rating is IP57, dust protected and waterproof.

What are the mounting options for this switch?

It features through hole mounting with right angle orientation.

What is the operating temperature range?

The operating temperature range is -30°C to 85°C.

Is this switch RoHS compliant?

Yes, it is RoHS3 compliant.
