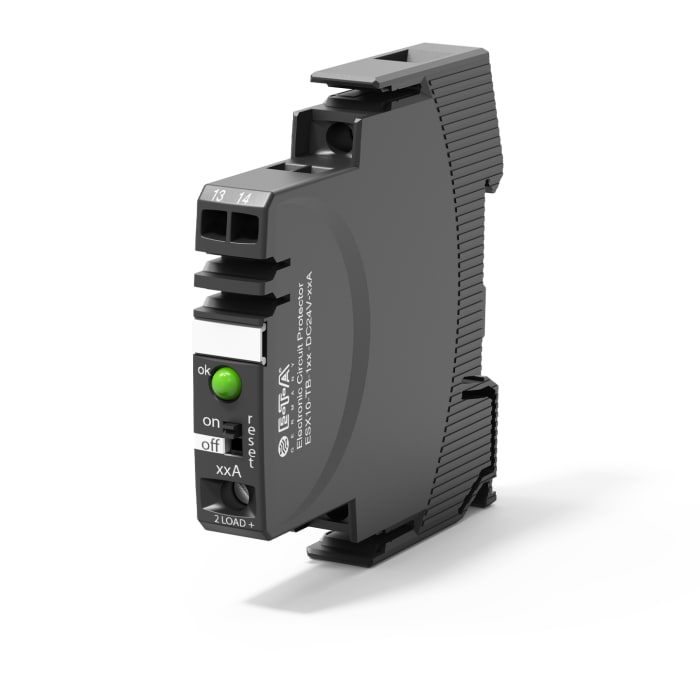

The E-T-A ESX10-T series electronic circuit protector, specifically the ESX10-TB-124-DC24V-3A model, is engineered for reliable protection of DC 24V load circuits. Its compact 12.5 mm width makes it suitable for space-constrained applications, and it mounts easily on a DIN rail.
This circuit protector features active electronic current limitation for short circuits and overload disconnection typically from 1.1 times the rated current. It responds quickly to prevent voltage dips in switch mode power supplies, thereby increasing machine uptime. The device can handle capacitive loads up to 75,000 μF.
Key specifications include a 3A current rating and a 24V operating voltage. The ESX10-TB-124-DC24V-3A model includes a slide switch actuator and is a single-pole device. It is designed for efficient fault detection and stable power supply, simplifying planning and reducing downtimes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 3A.
The operating voltage is 24V.
It is mounted on a DIN rail.
It is a solid-state electronic circuit breaker.
Overload disconnection occurs typically from 1.1 times the rated current.
It can handle capacitive loads up to 75,000 μF.
