| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Industrial Grade | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

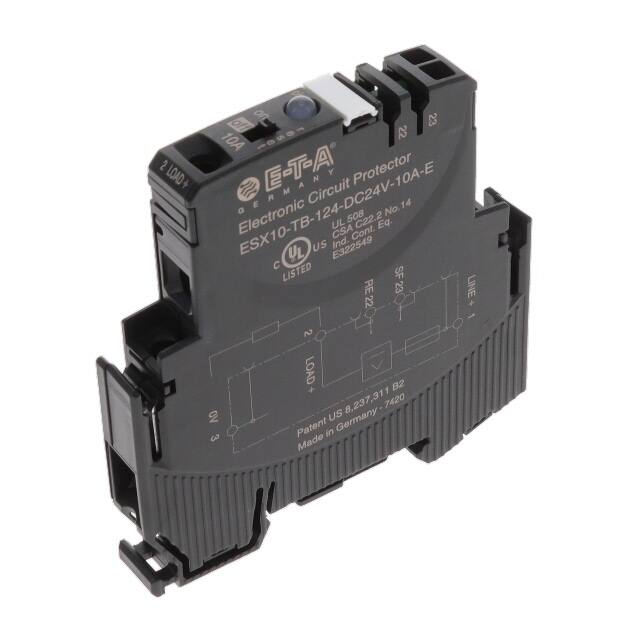

The E-T-A ESX10-T series electronic circuit protector, specifically the ESX10-TB-124-DC24V-10A-E model, provides selective protection for DC 24V load circuits. With a width of only 12.5 mm, it enhances machine and system uptime through active electronic current limitation during short circuits and overload disconnection. This protector responds faster than typical switch mode power supplies, preventing voltage dips.
Key features include active linear current limitation, a single trip curve for all loads, and the ability to handle capacitive loads up to 75,000 μF. The ESX10-TB-124-DC24V-10A-E has a fixed current rating of 10A and a voltage rating of 32VDC. It is designed for DIN rail mounting and features a slide switch actuator.
Approvals include ATEX, CSA C22.2 No 14, UL2367, UL508, and UL Class I Div 2, making it suitable for various industrial applications. The protector also includes illumination indicators for status monitoring (Green, Orange, Red).
This circuit protector simplifies planning and installation with its compact size and integral power distribution capabilities. It is designed to increase machine uptime through clear failure detection and a stable power supply, reducing downtimes via quick fault resolution.
24 VDC.
10 A.
Solid state.
DIN rail.
Up to 75,000 μF.
ATEX, CSA C22.2 No 14, UL2367, UL508, UL Class I Div 2.
Single.
