| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

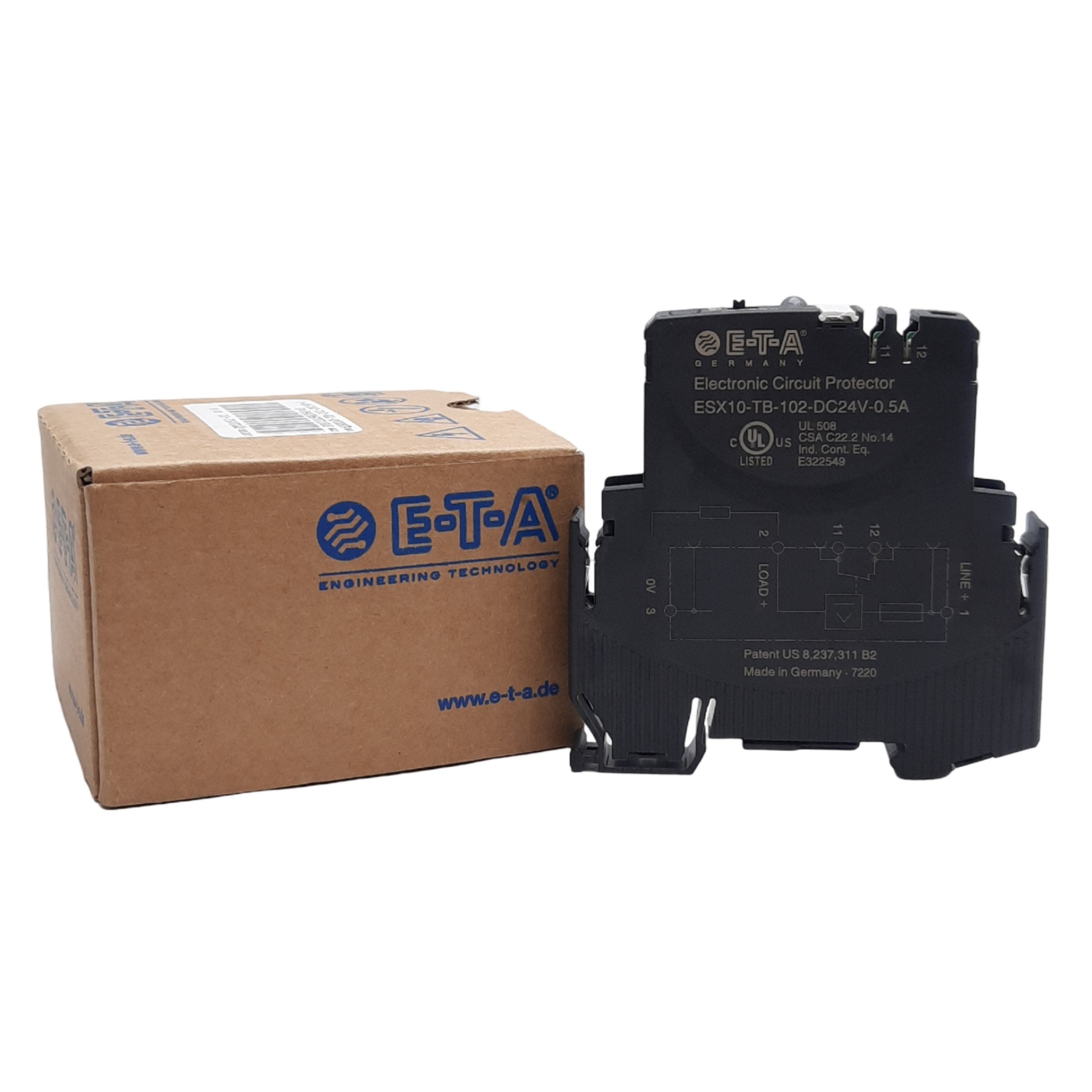

The E-T-A ESX10-T series electronic circuit protector, specifically the ESX10-TB-102-DC24V-0.5A model, is engineered for reliable protection of DC 24V load circuits. Its compact 12.5 mm width makes it suitable for space-constrained applications, and it mounts conveniently on a DIN rail.
This solid-state circuit breaker features active linear current limitation for short circuits and overload disconnection typically starting at 1.1 times the rated current. It is designed to respond faster than typical switch mode power supplies, preventing voltage dips and increasing system uptime. The protector can handle capacitive loads up to 75,000 μF and operates with a single trip curve for all load types. The ESX10-TB-102-DC24V-0.5A has a fixed current rating of 0.5A and a voltage rating of 24VDC.
Key features include a slide switch actuator and illumination indicators in green, orange, and red. The integral fail-safe element is synchronized with the cable cross-section for easier planning and installation. This model is suitable for applications requiring robust circuit protection in industrial and machine building environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 24 VDC.
The current rating is 0.5A.
It has 1 pole.
It is a Solid State breaker.
It is designed for DIN Rail mounting.
It can handle capacitive loads up to 75,000 μF.
It offers active linear current limitation.
