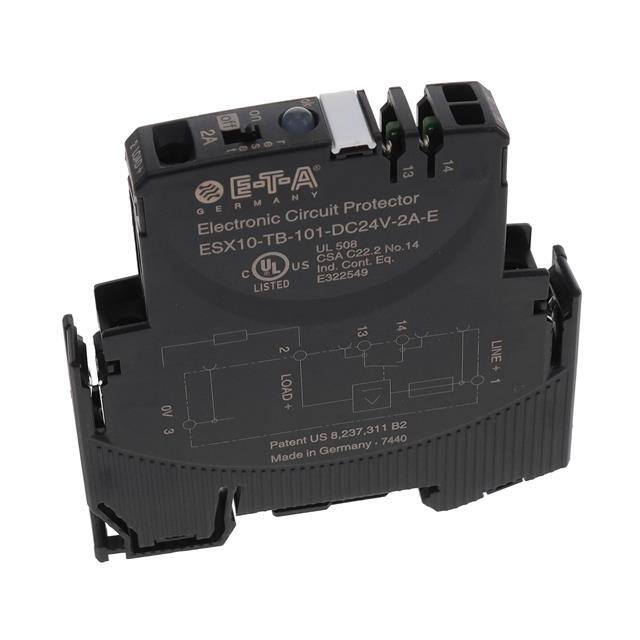

The E-T-A ESX10-T series electronic circuit protector, specifically the ESX10-TB-101-DC24V-2A-E model, offers selective protection for DC 24V load circuits. It is designed to increase machine uptime through active electronic current limitation and overload disconnection.
This circuit protector features a 2A current rating and a 32VDC voltage rating. It is a solid-state type with a single pole and a slide switch actuator. The device is track-mountable and has a width of 12.5 mm, making it suitable for space-constrained applications. It supports DIN rail mounting.
Key features include active linear current limitation, which responds faster than traditional power supplies to prevent voltage dips during short circuits. It can handle capacitive loads up to 75,000 μF and operates with a single trip curve for all loads. The protector also offers illumination indicators in green, orange, and red.
Approvals include ATEX, CSA C22.2 No 14, UL2367, UL508, and UL Class I Div 2, ensuring suitability for various industrial environments.
2A.
32VDC.
Solid state.
1.
Slide switch.
DIN rail.
ATEX, CSA C22.2 No 14, UL2367, UL508, UL Class I Div 2.
