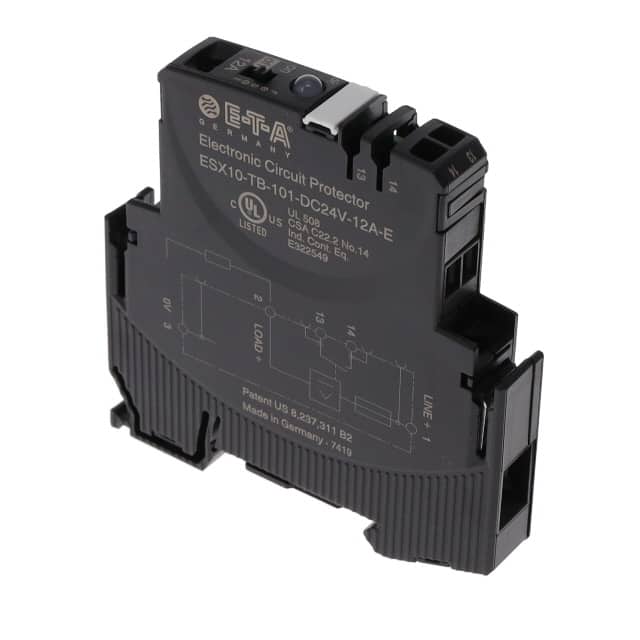

The E-T-A ESX10-TB-101-DC24V-12A-E is a solid state electronic circuit protector designed for DC 24V load circuits. It offers active electronic current limitation for short circuits and overload disconnection typically from 1.1 times the rated current. This circuit breaker responds faster than typical switch mode power supplies, preventing voltage dips and increasing system uptime.
Key electrical specifications include a 12A current rating and a 32VDC voltage rating. It is designed to handle capacitive loads up to 75,000 μF and features a single trip curve for all loads. The breaker type is solid state, with a single pole configuration.
For mechanical integration, the ESX10-TB-101-DC24V-12A-E is designed for DIN rail mounting and features a slide switch actuator. It also includes illumination indicators in green, orange, and red.
This circuit breaker has received approvals from ATEX, CSA C22.2 No 14, UL2367, UL508, and UL Class I Div 2, indicating its suitability for various industrial applications.
The rated current is 12 A.
The voltage rating is 32 VDC.
It is a solid state circuit breaker.
It has 1 pole.
It is designed for DIN rail mounting.
It carries ATEX, CSA C22.2 No 14, UL 2367, UL 508, and UL Class I Div 2 approvals.
It can handle capacitive loads up to 75,000 µF.
