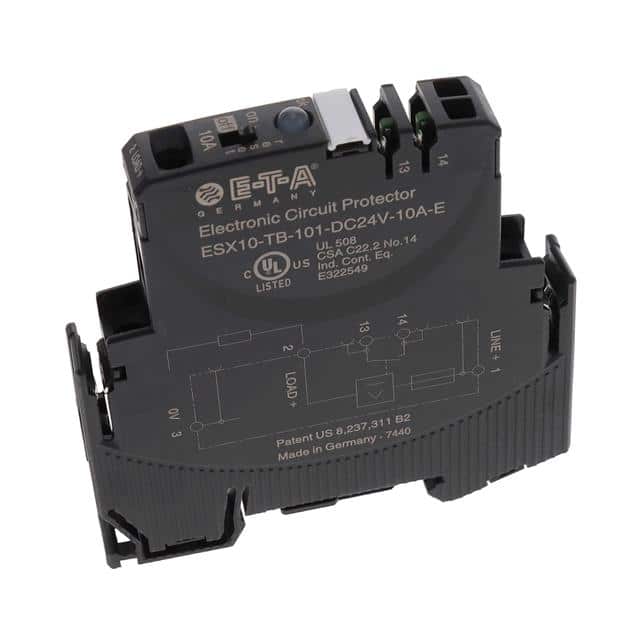

The E-T-A ESX10-TB-101-DC24V-10A-E is an electronic circuit protector from the ESX10-T series, designed to selectively protect DC load circuits. It features a compact 12.5 mm width and is suitable for DIN rail mounting.
This solid-state circuit breaker provides active electronic current limitation for short circuits and overload disconnection typically from 1.1 times the rated current. It responds faster than typical switch mode power supplies, preventing voltage dips and ensuring stable power. The protector handles capacitive loads up to 75,000 μF and operates with a single trip curve for all load types.
Key electrical specifications include a 10A current rating and a voltage rating of 32VDC. The device has one pole and features a slide switch actuator. Illumination indicators are available in green, orange, and red.
Approvals include ATEX, CSA C22.2 No 14, UL2367, UL508, and UL Class I Div 2, making it suitable for various industrial applications. The RoHS, REACH, and MSL compliance statuses are listed as compliant or unaffected, though confidence in these is low.
The current rating is 10A.
The voltage rating is 32VDC.
It has 1 pole.
It is a solid state breaker.
It mounts on DIN Rail.
It is approved by ATEX, CSA C22.2 No 14, UL2367, UL508, and UL Class I Div 2.
It can handle capacitive loads up to 75,000 μF.
