ESX10-TB-114-DC24V-10A
ETA
The E-T-A ESX10-TB-114-DC24V-10A is a solid-state electronic circuit protector designed for DC 24V load circuits. It features a 10A current rating and DIN rail mounting.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

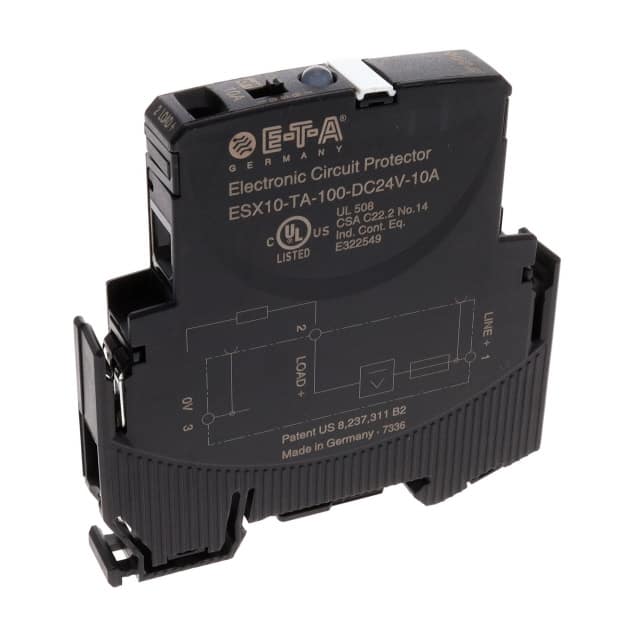

The E-T-A ESX10-T series electronic circuit protector, specifically the ESX10-TA-100-DC24V-10A model, is engineered to selectively protect DC 24V load circuits, enhancing machine and system uptime.
This solid state circuit breaker features active electronic current limitation for short circuits and overload disconnection typically starting at 1.1 times the rated current. It responds faster than typical switch mode power supplies, preventing voltage dips. The protector handles capacitive loads up to 75,000 μF and operates with a single trip curve for all loads.
Key electrical specifications include a 10A current rating and a 32V voltage rating. It is a single-pole device with a slide switch actuator and offers illumination indicators in green, orange, and red. Mounting is facilitated via DIN rail.
Approvals include ATEX, CSA C22.2 No 14, UL2367, UL508, and UL Class I Div 2, making it suitable for various industrial applications. The device also boasts RoHS3 compliance and an MSL 1 rating.
The current rating is 10A.
The voltage rating is 32V.
It is a solid state electronic circuit protector.
It is designed for DIN rail mounting.
It is RoHS3 Compliant.
The MSL is 1 Unlimited.
It can handle capacitive loads up to 75,000 μF.
