| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
68 pcs
|
68 pcs | On Request | 1 | On Request | On Request | 616 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish (Contact Area) | |
| Contact Finish (Unspecified condition) | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Maximum Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature (@ With Tin plating) | |
| Operating Temperature (Unspecified condition) | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Voltage Rating | |
| Voltage Rating (@ Mated with TSW or ESQ) | |
| Voltage Rating (Unspecified condition) |

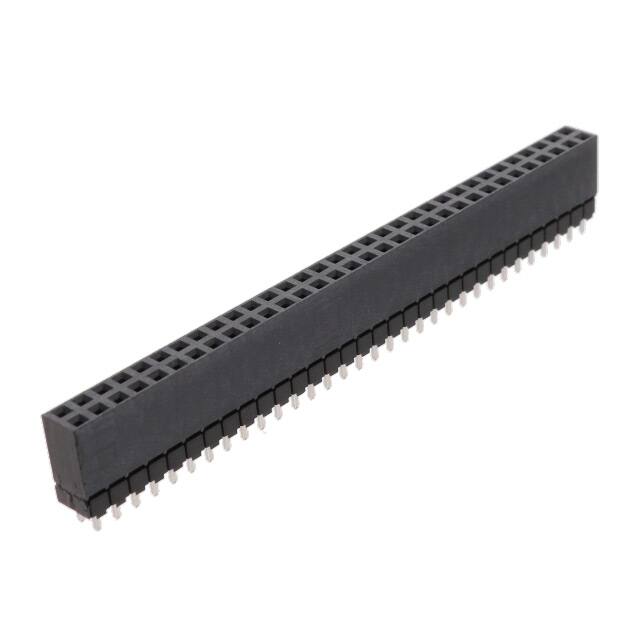

The Samtec ESW-132-12-S-D is a 64-position elevated socket connector designed for board-to-board applications. It features a forked contact type and a push-pull fastening mechanism. The connector has a pitch of 2.54mm (0.100") with a row spacing of 2.54mm (0.100"). It is housed in a black glass filled polyester insulator with a flammability rating of UL94 V-0.
The electrical ratings include a current rating of 5.2 A per pin (with 2 pins powered) and a voltage rating of 515 VAC when mated with TSW or ESQ headers. The operating temperature range is -55°C to +105°C with tin plating. The contact material is phosphor bronze with a finish of 10 µ" (0.25 µm) gold on the contact area and matte tin on the tail. The insulation height is 11.05mm (0.435") and the contact length is 2.29mm (0.090").
This connector is mounted using through hole technology with solder termination. It supports an insertion depth range of 3.68mm to 6.35mm and can withstand up to 100 mating cycles with 10 µ" gold plating.
64 positions.
2.54mm (0.100").
5.2 A per pin (2 pins powered).
515 VAC.
Through hole with solder termination.
