| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
519 pcs
|
519 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

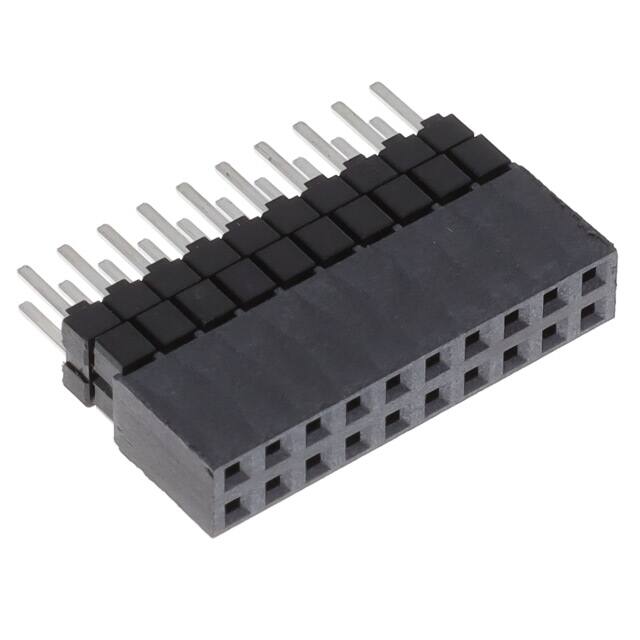

The ESW-110-23-S-D is a 20 position elevated socket receptacle from Samtec's ESW series. It features a 2.54mm (0.100") pitch and 2 rows of forked contacts. The connector is designed for board-to-board applications and is mounted through hole with solder tail termination. The insulation height is 16.129mm (0.635") and contact length is 4.83mm (0.190"). Contact finish is 30µin Gold/Tin for reliable connections. The housing is black UL94 V-0 rated material. Electrical rating: 5.2A per contact and 550VAC. Operating temperature range -55°C to 125°C. This connector uses Tiger Buy contact system for high reliability. It is RoHS compliant and REACH unaffected. Packaging is in tube, 22 per package. Suitable for elevated stacking applications requiring a low profile vertical socket.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.50 | $4.50 |
| 22+ | $3.95 | $3.95 |
| 44+ | $3.72 | $3.72 |
| 506+ | $3.45 | $3.45 |
| 1,012+ | $3.18 | $3.18 |
| 2,508+ | $2.78 | $2.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100").
5.2A per contact.
550VAC.
Through hole solder tail.
-55°C to 125°C.
30µin Gold/Tin.
