| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Plating Underlayer | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Flammability Rating | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead-Free Solderable | |
| Material Flammability Rating | |
| Mating Connectors | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Voltage Rating |

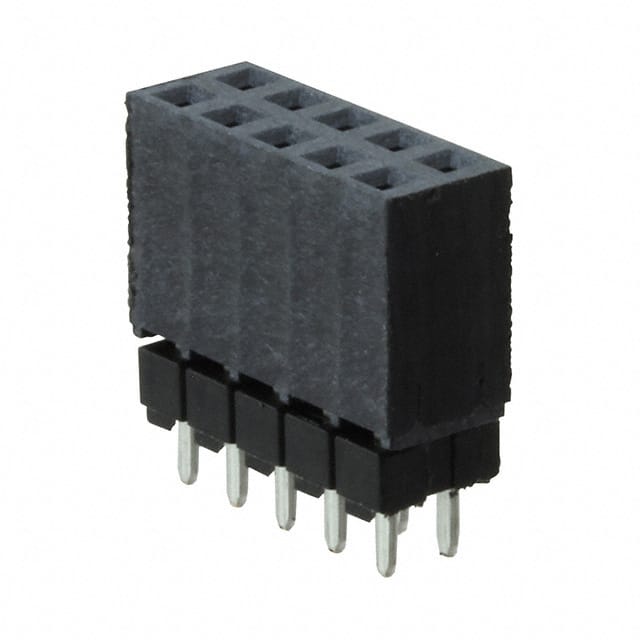

The Samtec ESW-105-12-L-D is a 10-position elevated socket connector from the ESW series, featuring a dual-row configuration with 2.54mm pitch. The connector uses phosphor bronze contacts with 10 µ" gold plating on the mating area and matte tin on the tail, over a 50 µ" nickel underlayer. The housing is molded from black glass filled polyester with a UL94 V-0 flammability rating.
Electrical ratings include 5.2A per contact (with 2 pins powered) and a voltage rating of 515 VAC. The operating temperature range is -55°C to +125°C with gold plating, and -55°C to +105°C with tin plating. The connector supports an insertion depth of 3.68 mm to 6.35 mm and is rated for up to 100 mating cycles with gold plating.
The ESW-105-12-L-D is designed for through hole solder termination and is compatible with a wide range of mating headers including TSW, MTSW, EW, MTLW, and others. It is suitable for elevated board-to-board stacking applications and is used in PC/104 stackthrough configurations. Note: this connector is not lead-free solderable and is intended for lead wave soldering only.
It has 10 positions arranged in 2 rows.
The pitch is 2.54 mm (0.100").
5.2 A per contact with 2 pins powered.
515 VAC when mated with TSW or ESQ.
Through hole with solder termination.
-55°C to +125°C with gold plating, -55°C to +105°C with tin plating.
Gold (10 µ") on the mating area, matte tin on the tail, over 50 µ" nickel underplate.
