Mfr Part #:

ESSV040W-1400-27

Q: What is the package type?

Plastic case with silicone potting, IP66-rated.

Q: What dimming methods are supported?

Analog (0-10V), ELV (reverse-phase), and TRIAC (forward-phase).

Q: What protections are included?

Over-current, over-temperature, short-circuit, and output open load.

Available from 1 distributors

Mfr Name: ERP Power, LLC

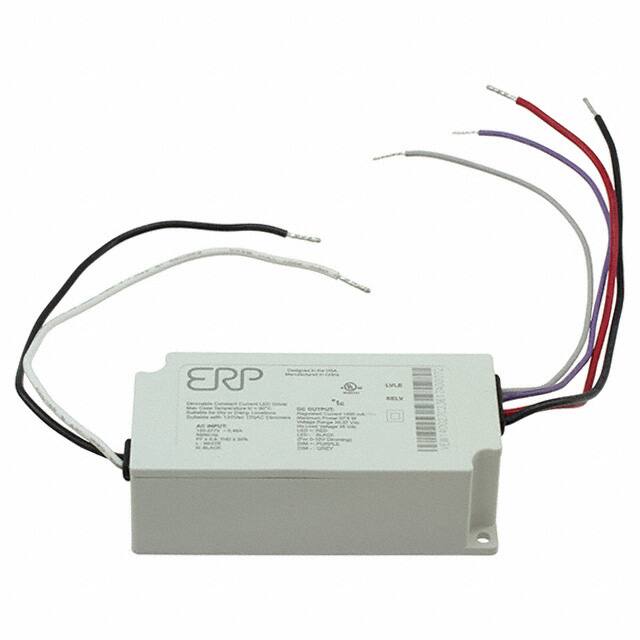

The ESSV040W-1400-27 is a 38W constant current LED driver from ERP Power with 120-277VAC input, 1.4A output, and 87% efficiency. It features Tri-Mode dimming (0-10V, TRIAC, ELV) and an IP66-rated case.

✓ Total Stock: 472 pcs

ESSV040W-1400-27 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	472 pcs On Request	472 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ESSV040W-1400-27 Description

Short technical summary and product information.

The ESSV040W-1400-27 is a constant current LED driver from ERP Power's ESSV series, delivering 38W at 1.4A with an output voltage range of 20-27VDC. It operates from a nominal input voltage of 120 to 277VAC and achieves up to 87% typical efficiency. The driver supports Tri-Mode dimming, compatible with 0-10V analog, TRIAC (forward-phase), and ELV (reverse-phase) dimmers, with a dimming range of 1% to 100% of output current.

Designed for commercial and residential lighting applications, the driver includes protections against over-current, over-temperature, short-circuit, and output open load. It features a power factor >0.9 and total harmonic distortion <20%. The unit is ENERGY STAR, DLC, and CA Title 24 compliant, with EMI compliance to FCC Part 15 Class B (120VAC) / Class A (277VAC) and EN55015.

The driver is housed in an IP66-rated plastic case with silicone potting, measuring approximately 84.7 x 40.7 x 27.3 mm (datasheet dimensions). It is chassis mountable with wire lead terminations. The maximum case temperature is 90°C, and the minimum lifetime is 50,000 hours at 70°C case temperature. The driver carries UL Class P and 5VA flammability rating.

ESSV040W-1400-27 Quick Information

Product Type: LED Driver

Series: ESSV

Canonical Name: ERP Power ESSV040W-1400-27 LED Driver, 38W, 1.4A, 20-27VDC

Subcategory: Constant Current LED Driver

ESSV040W-1400-27 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ESSV040W-1400-27 Features

Constant current output of 1.4A at 38W.
Tri-Mode dimming: 0-10V, TRIAC, and ELV.
IP66-rated plastic case with silicone potting.
UL Class P and 5VA flammability rating.
50,000-hour lifetime at 70°C case temperature.

ESSV040W-1400-27 Applications

Ideal for commercial LED downlighting.
Suitable for architectural lighting fixtures.
Used in residential LED lighting systems.
Works with wide-area downlight applications.

ESSV040W-1400-27 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the ESSV040W-1400-27?

120 to 277 VAC nominal.

What is the output voltage range?

20 to 27 VDC.

What is the package type?

Plastic case with silicone potting, IP66-rated.

Is the ESSV040W-1400-27 RoHS compliant?

Yes, RoHS3 compliant.

What dimming methods are supported?

Analog (0-10V), ELV (reverse-phase), and TRIAC (forward-phase).

What is the efficiency of this LED driver?

87% typical.

What protections are included?
