| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
520 pcs
|
520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Case Material | |
| Current | |
| Dimming | |
| Dimming Range | |
| Efficiency | |
| Features | |
| Flammability Rating | |
| Height | |
| Input Voltage Range | |
| Length | |
| Lifetime | |
| Max Case Temperature | |
| Max Output Power | |
| Mounting Type | |
| Number of Outputs | |
| Output Voltage Range | |
| Package / Case | |
| Power (Watts) | |
| Power Factor | |
| Ratings | |
| Startup Time | |
| THD | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

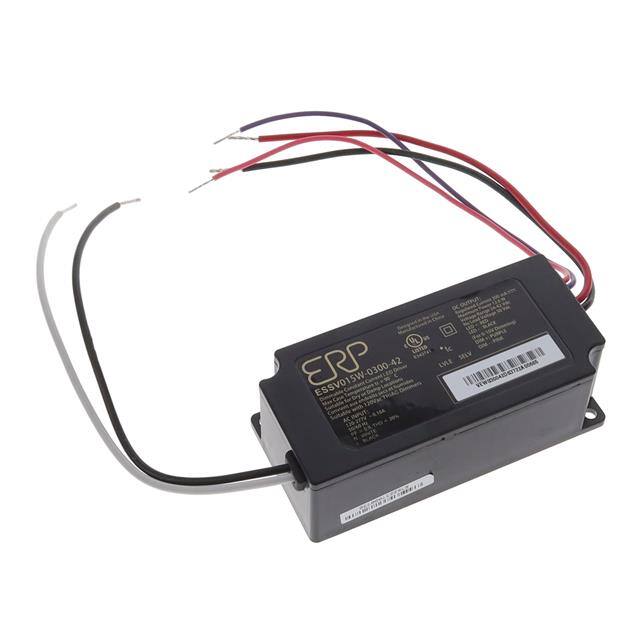

The ERP Power ESSV015W-0300-42 is a constant current LED driver from the ESSV series, designed for commercial and residential lighting applications. It delivers 300mA output current with an output voltage range of 20 to 42 Vdc and a maximum output power of 15W (rated 13W). The driver accepts a universal input voltage of 120 to 277 VAC and achieves up to 87% typical efficiency.
This driver features Tri-Mode Dimming, supporting 0-10V analog, TRIAC (forward-phase), and ELV (reverse-phase) dimming methods with a dimming range of 1 to 100%. It includes protections for over-current (OCP), over-temperature (OTP), and short-circuit (SCP) with auto recovery. The IP66-rated plastic case with silicone potting enables use in damp or outdoor environments.
The driver is chassis-mountable with wire lead terminations. It measures 83.8mm x 39.9mm x 27.2mm and has a maximum case temperature of 90°C. Compliance includes CE, cULus, cURus, and RoHS3/REACH. The flammability rating is 5VA, and the lifetime is rated at 50,000 hours at 70°C case temperature.
300mA constant current.
120 to 277 VAC.
Analog (0-10V), ELV (reverse-phase), and TRIAC (forward-phase) dimming.
87% typical.
IP66.
Over-current (OCP), over-temperature (OTP), and short-circuit (SCP) with auto recovery.
50,000 hours at 70°C case temperature.
