| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Case Material | |
| Class 2 | |
| Current | |
| Dimensions - Height | |
| Dimensions - Length | |
| Dimensions - Width | |
| Dimming | |
| Dimming Range | |
| Dimming Type | |
| Efficiency | |
| Features | |
| Flammability Rating | |
| IP Rating | |
| Input Voltage | |
| Lifetime | |
| Max Case Temperature | |
| Max Output Power | |
| Number of Outputs | |
| Output Current | |
| Output Voltage Range | |
| Package / Case | |
| Power (Watts) | |
| Power Factor | |
| Protections | |
| Ratings | |
| Standards | |
| Startup Time | |
| THD | |
| Termination Style | |
| Topology | |
| Type | |
| UL Class | |
| Voltage |

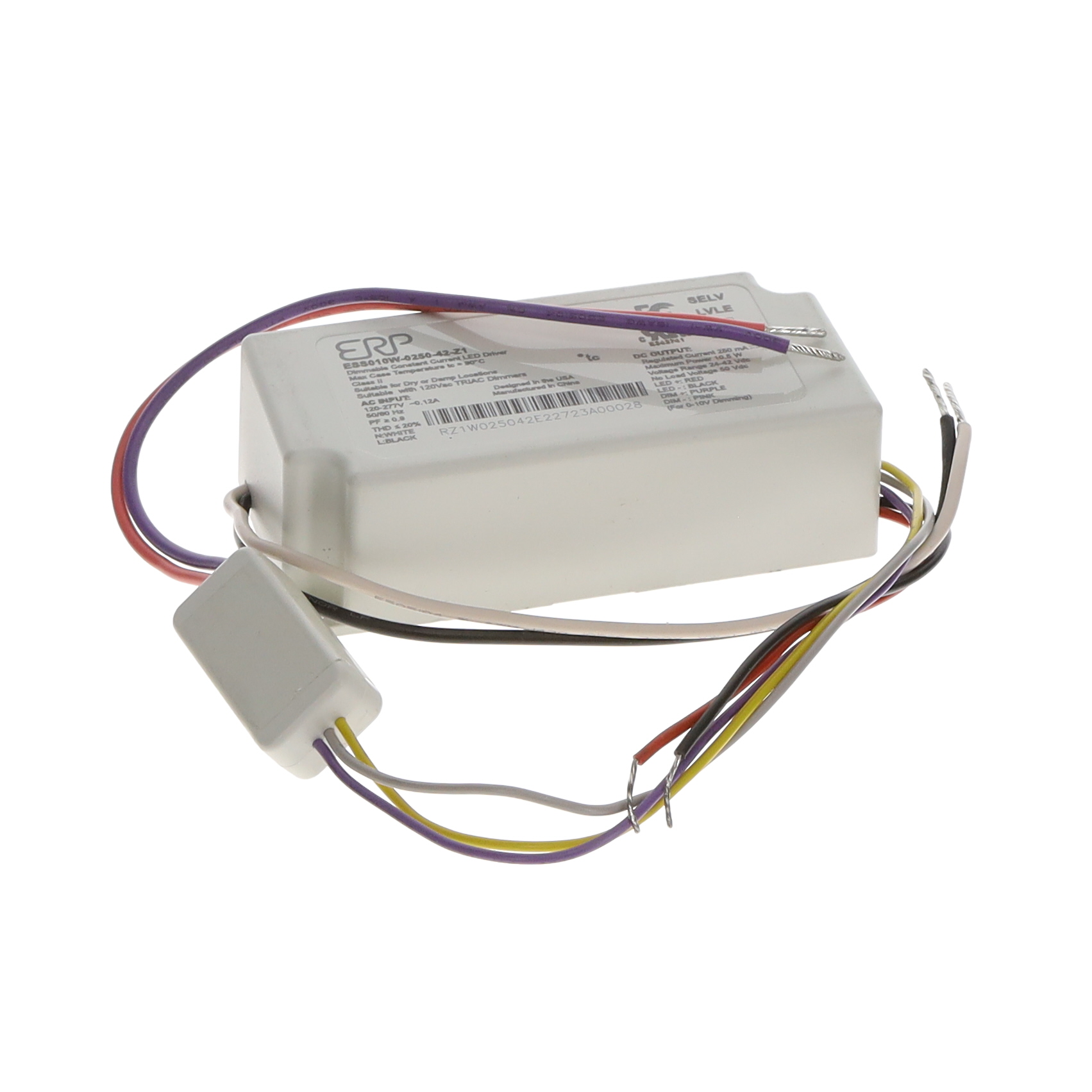

The ERP Power ESSV010W-0250-42 is a constant current LED driver designed for commercial, residential, and architectural lighting applications. It accepts a wide input voltage range of 120 to 277 VAC and delivers a maximum output power of 10.5W at 250mA constant current, with an output voltage range of 24 to 42 VDC. The driver achieves up to 87% typical efficiency and maintains a total harmonic distortion (THD) of less than 20% with a power factor greater than 0.9.
This driver supports Tri-Mode dimming, compatible with 0-10V analog, TRIAC (forward-phase), and ELV (reverse-phase) dimmers, offering a dimming range from 1% to 100%. It includes comprehensive protections such as over-current, over-temperature, short-circuit, and output open load, with auto-recovery on over-temperature. The driver has a minimum lifetime of 50,000 hours at 70°C case temperature.
Encased in an IP66-rated plastic housing with silicone-based potting, the ESSV010W-0250-42 is suitable for indoor and outdoor use. It is UL Class P rated with a 5VA flammability rating and meets Class 2 power supply requirements. The driver complies with FCC Part 15 Class B (120V) / Class A (277V), EN55015, ENERGY STAR, DLC, and CA Title 24 standards. Dimensions are 84.7 x 40.7 x 27.3 mm with wire lead termination.
The input voltage range is 120 to 277 VAC.
It provides a constant current of 250mA and a maximum output power of 10.5W.
It supports analog (0-10V), TRIAC (forward-phase), and ELV (reverse-phase) dimming.
The driver is listed as RoHS3 compliant, but this is not verified.
It comes in a plastic case with wire leads for termination.
Protections include over-current (OCP), over-temperature (OTP), short-circuit (SCP), output open load, and over-temperature with auto recovery.
It is certified to CE, cULus, cURus, and complies with FCC Part 15, EN55015, ENERGY STAR, DLC, and CA Title 24.
