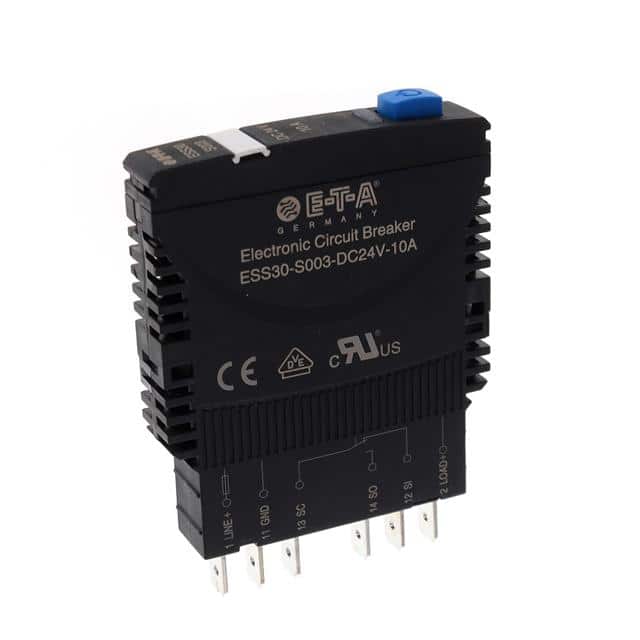

The E-T-A ESS30-S003-DC24V-10A is a solid state electronic circuit breaker specifically designed for DC 24V applications. It provides overcurrent protection with a 10A rating and meets requirements for DIN EN 60934 and UL1077 as a Supplementary Protector.
This compact breaker features active electronic current limitation and overload disconnection at typically 1.2 times the rated current. It is capable of switching capacitive loads up to 40,000 µF. The device has a pushbutton actuator and a 1-pole configuration, with a voltage rating of 30V.
Designed for easy installation, it can be plugged into terminal blocks and power distribution systems. The breaker includes visual status indication via a multicoloured LED and integral signal outputs. It also features a manual ON/OFF switch for individual load circuit startup and reset after overcurrent disconnection.
Approvals include IEC 60934 and UL1077, making it suitable for various industrial and automation applications requiring reliable DC power protection.
The current rating is 10A.
The voltage rating is 24VDC, with a maximum of 30V.
It is a solid state electronic circuit breaker.
This circuit breaker has 1 pole.
The mounting type is Holder.
The approval agencies are IEC 60934 and UL1077.
It can switch capacitive loads up to 40,000 µF.
