| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
344 pcs
|
344 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Dimming | |
| Dimming Method | |
| Dimming Range | |
| Efficiency | |
| Features | |
| Height | |
| Ingress Protection (IP) Rating | |
| Input Voltage (Nominal) | |
| Length | |
| Lifetime @ 70°C Case | |
| Maximum Case Temperature | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Power Factor | |
| Protections | |
| Ratings | |
| Startup Time | |
| Termination Style | |
| Topology | |
| Total Harmonic Distortion | |
| Type | |
| Voltage | |
| Width |
The ESS030W-1750-14-Z1 is a constant current LED driver from the ESS/ESST series by ERP Power. It delivers 25W output at 1.75A with an input voltage range of 120-277VAC. The driver achieves a typical efficiency of 87%, a power factor greater than 0.9, and total harmonic distortion below 20%.
Tri-Mode dimming supports TRIAC (forward-phase), ELV (reverse-phase), and 0-10V analog dimming, with a dimming range of 1% to 100% of output current. Protection features include over-current, over-temperature, and short-circuit protection with auto recovery. The driver is rated IP64 for dust and water resistance, with a silicone-based potting compound.

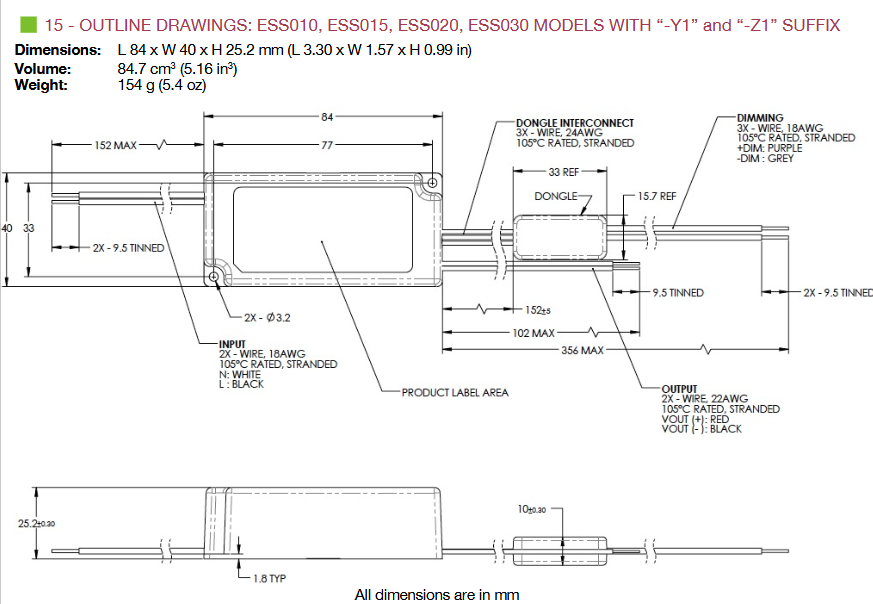

Mechanical dimensions are 83.8mm x 39.9mm x 25.1mm (3.30 x 1.57 x 0.99 inches) with wire lead terminations. Maximum case temperature is 90°C, and the rated lifetime is 50,000 hours at 70°C case temperature. The driver is Class 2 power supply compliant.
Compliance includes CE, cURus, FCC (Class B at 120VAC, Class A at 277VAC), EN55015, ENERGY STAR, DLC, and CA Title 24. RoHS3 compliant. Suitable for indoor and outdoor commercial LED lighting applications.
120-277 VAC.
83.8mm x 39.9mm x 25.1mm (3.30 x 1.57 x 0.99 inches).
Yes, RoHS3 compliant.
Analog, ELV, and Triac (Tri-Mode dimming).
87% typical.
Over-current, over-temperature, and short-circuit protection with auto recovery.
IP64.
