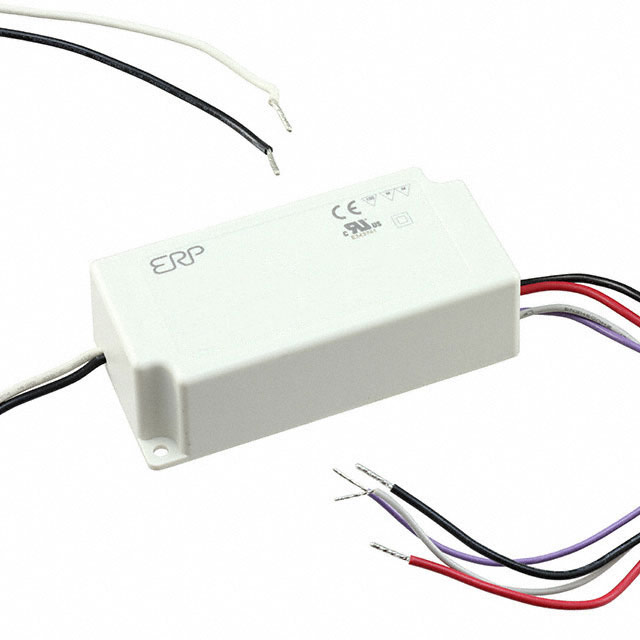

ESS030W-0620-42-Z1 Constant current AC-DC LED driver from ERP Power, LLC, providing 620mA output at up to 26W with Tri-Mode Dimming (TRIAC, ELV, 0-10V).
Mfr Part #:

ESS030W-0620-42-Z1

Available from 1 distributors
Mfr Name: ERP Power, LLC
ERP Power, LLC
Constant current AC-DC LED driver from ERP Power, LLC, providing 620mA output at up to 26W with Tri-Mode Dimming (TRIAC, ELV, 0-10V).
✓ Total Stock: 3,860 pcs

ESS030W-0620-42-Z1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,860 pcs
On Request
3860 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ESS030W-0620-42-Z1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Current
Dimming
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Package / Case
Power (Watts)
Ratings
Termination Style
Topology
Type
Voltage
Width
View Similar Products (0)

ESS030W-0620-42-Z1 Description

Short technical summary and product information.

The ESS030W-0620-42-Z1 is a constant current (CC) AC-DC LED driver from the ESS family by ERP Power, LLC. It features Tri-Mode Dimming™ compatibility with TRIAC (forward-phase), ELV (reverse-phase), and 0-10V analog dimmers, offering a dimming range of 1-100%.



This driver delivers 620mA output current and up to 26W output power, with an output voltage range of 6 to 56 Vdc. It operates from an input voltage range of 120 to 277 VAC and achieves up to 87% efficiency with a power factor >0.9 and total harmonic distortion <20%.



The unit is protected against over-current (OCP), over-temperature (OTP), and short-circuit (SCP) with auto recovery. It is rated IP64 for dust and water ingress resistance and comes in an ESS plastic case measuring 83.8mm x 39.9mm x 25.1mm, designed for chassis mounting with wire lead terminations.

ESS030W-0620-42-Z1 Quick Information

Product Type: LED Driver
Series: ESS030W
Canonical Name: ESS030W-0620-42-Z1 LED Driver
Subcategory: AC-DC LED Driver

ESS030W-0620-42-Z1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ESS030W-0620-42-Z1 Features

  • Constant current AC-DC LED driver.
  • Tri-Mode Dimming with TRIAC, ELV, 0-10V.
  • 87% efficiency, power factor >0.9.
  • IP64 dust/water ingress protection.
  • Over-current, over-temperature, short-circuit protection.

ESS030W-0620-42-Z1 Applications

  • For indoor and outdoor LED lighting fixtures.
  • Compatible with leading-edge and trailing-edge dimmers.
  • Suitable for downlights, troffers, and linear lighting.
  • Use in applications requiring Class 2 power supply.
  • Ideal for 0-10V dimming control systems.

ESS030W-0620-42-Z1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the ESS030W-0620-42-Z1?

120 to 277 VAC.

What dimming types does this LED driver support?

Analog (0-10V), ELV (reverse-phase), and TRIAC (forward-phase) dimming.

What is the output current of the ESS030W-0620-42-Z1?

620mA (with a range of 180mA to 2.1A).

What is the IP rating of this driver?

IP64.

What protections are included?

Over-current (OCP), over-temperature (OTP), and short-circuit (SCP) with auto recovery.
